This guide should help you with removing & replacing the Lenovo ThinkPad T530 hard drive (HDD) with a new one or a solid state Drive (SSD). This is a remarkably simple repair as the HDD is designed to be accessible.
You can find the official Lenovo documentation attached as well.
-
-
Place it on a flat, sturdy surface and unplug the power cord.
-

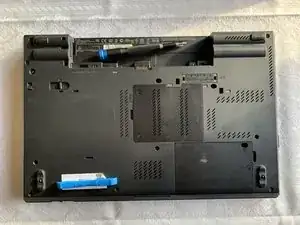

Remove the battery by moving the battery latch and sliding the battery out.
-

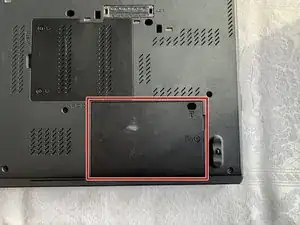

Locate the drive enclosure.
-
-
-

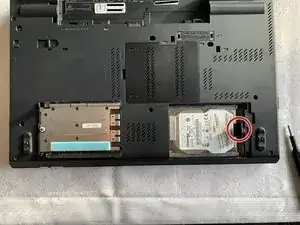

Use a small Philips screwdriver to unscrew the single screw that holds down the drive enclosure cover. Loosen the screw, but do not remove it.
-
Carefully remove the drive enclosure cover.
-
-
-
Slightly lift & pull on the black pull tab until the hard drive and the two rubber rails come out of the enclosure.
-

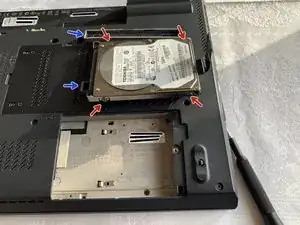

Remove the two rubber rails (blue arrows) & four screws (red arrows). Those should be reused if you are replacing the HDD with a new HDD or SDD.
-
To reassemble your device, follow these instructions in reverse order.
