Lenovo Thinkcentre M83 SFF Fan Replacement

Scritto Da: Murtaza Warraich
  • Commenti: 1
Lenovo Thinkcentre M83 SFF Fan Replacement

Difficoltà

Moderate

Passi

9

Tempo Necessario

25 - 45 minuti

Introduzione

Use this guide to replace a fan inside of a Lenovo ThinkCentre M83 SFF computer to prevent overheating and further damage to your computer.

If your Lenovo ThinkCentre M83 SFF Pro Desktop computer is overheating, there might be an issue with your internal fan. Replacing a fan inside a computer can help improve the overall performance and longevity of the system. The fan is responsible for cooling the various components within the computer, such as the CPU and GPU. If a fan becomes defective, it can negatively impact the effectiveness of the computer and lead to overheating.

Before using this guide, inspect the computer fan for dust and debris. This may also cause it to malfunction and not work. A small build-up of dust can be removed by using a small dust blower.

Before beginning this repair, be sure to turn off the device, and unplug from the power adapter.

  1. CARoQr24bTgU6eb2
    CARoQr24bTgU6eb2
    MdDIXDpsdBp1rtAQ

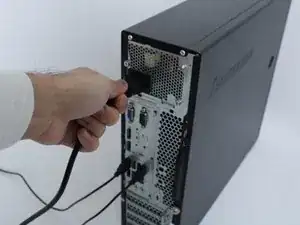

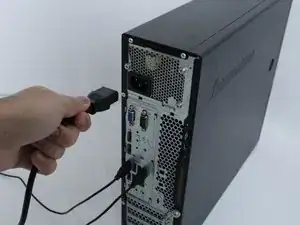

    • Disconnect all of the cables connected to the computer.

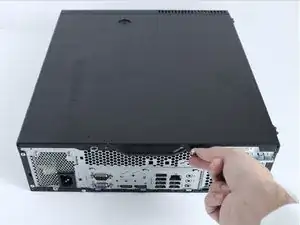

  2. SOY4LgPDIPKceLGC

    • Lay the computer on its side.

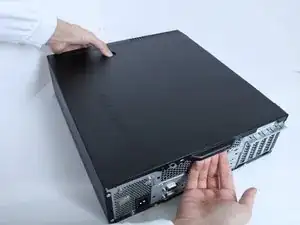

    • Unscrew the 14.0 mm screw with your hands to remove the side panel.

  3. FIKxtARIRk2S3sGm
    FIKxtARIRk2S3sGm
    Mnha6TfGnjIjeNMZ
    HP2RlqmRpCOX2DKc

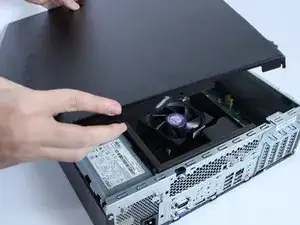

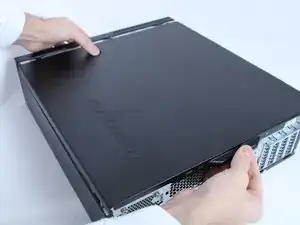

    • To remove the side panel press the release button and slide the cover to the rear of the computer.

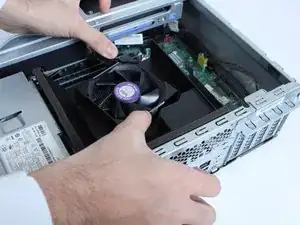

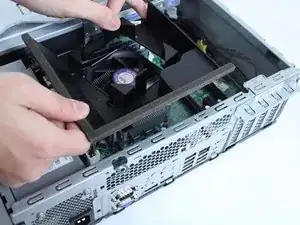

  4. vXZNadJTZTXVeaSr
    vXZNadJTZTXVeaSr
    KE1BnVQFjrJFfmHC
    SyuQLPWVRWeEHRnu

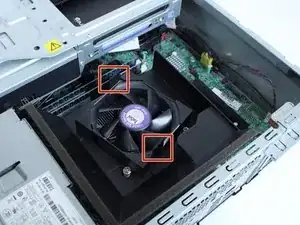

    • Remove the fan cover by pushing the two tabs out slightly with your hands, and lifting the cover up gently.

  5. FRcDrdRVpNLMQeMB
    FRcDrdRVpNLMQeMB
    fqG33iWI5jEEAWwU
    BMPFsCwHPvLMugNg

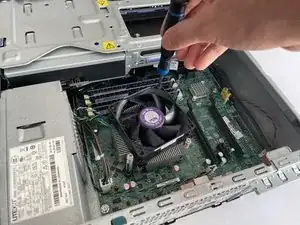

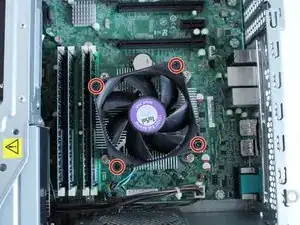

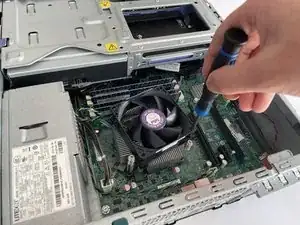

    • Use a Phillips #0 screwdriver to remove four 12.0 mm screws securing the fan to the heat sink.

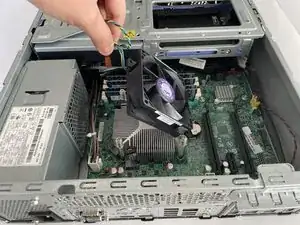

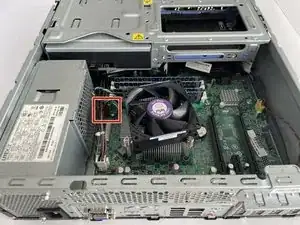

  6. I3q2q5WmHVJTODv3
    I3q2q5WmHVJTODv3
    KXEieT5FlcfbsyMJ
    ZoLFtgkmDZE1lHKE

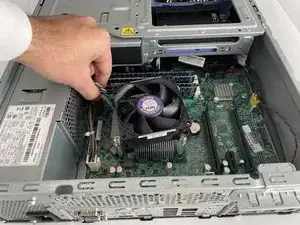

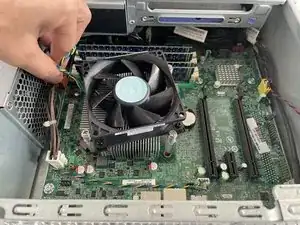

    • Pull the bundled fan cable away from the connector in the same direction as the individual wires are running to detach the fan from the motherboard.

    • Pull evenly on the full width of the cable so that no individual wires are overly strained.

    • Lift the fan out from the motherboard.

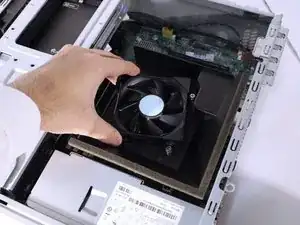

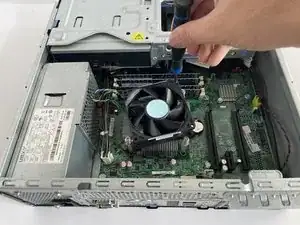

  7. AbZgPcyBM5SETB4n
    AbZgPcyBM5SETB4n
    JEFbDQDxl3LLRfK3
    1SmpWmUcdoyfeiFZ

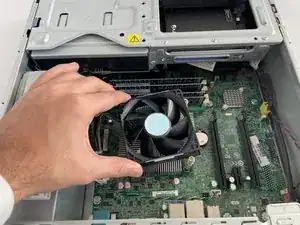

    • Place the new fan on top of the heat sink and position it so that it aligns with the screw holes.

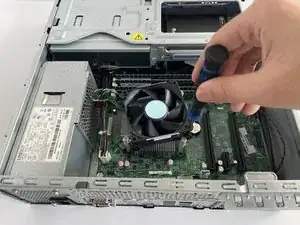

    • Use a Phillips #0 screwdriver to replace the four 12 mm screws that secure the fan.

    • Do not over tighten the screws.

  8. bpoChXrJwpGnL5up
    bpoChXrJwpGnL5up
    fbYlLw6CXw2rsIN4
    KQKZV2NLLcLu5WA3

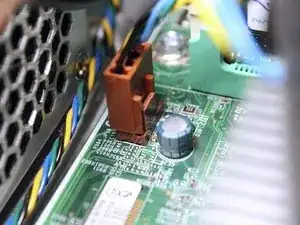

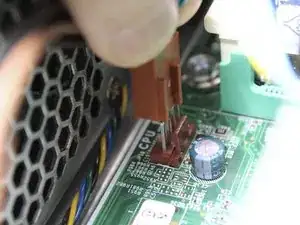

    • Clip the new fan's cable connector into the motherboard socket by aligning the pins together and pushing down.

    • Don't jam the connector down as the pins can be damaged if they are not lined up properly.

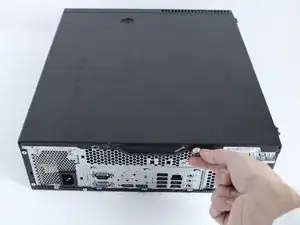

  9. sN1EHgOtFhTZBaaS
    sN1EHgOtFhTZBaaS
    um1jACxDt633sLM1
    PMALQLqFgDXPgGaQ

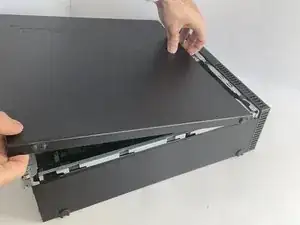

    • Place the fan cover back on.

    • Slide the computers cover panel into place.

    • Screw the 14 mm screw back in with your hands.

Conclusione

Your device should be reassembled by following the final step.
