Lenovo Thinkpad E540 Fan Replacement

Scritto Da: Timothy Sumner
  • Commenti: 1
Lenovo Thinkpad E540 Fan Replacement

Difficoltà

Moderate

Passi

7

Tempo Necessario

10 - 15 minuti

Introduzione

Follow this guide to replace the fan on your Lenovo ThinkPad E540 laptop.

  1. Evmt1fQyhGGdWmfb
    Evmt1fQyhGGdWmfb
    DMANpbSJVTKEjgdQ

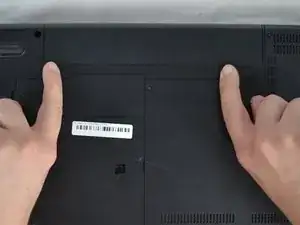

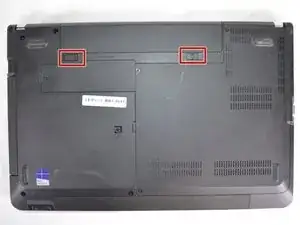

    • Push the battery release switches away from each other.

  2. 2dNQoAkYEOKy43pf

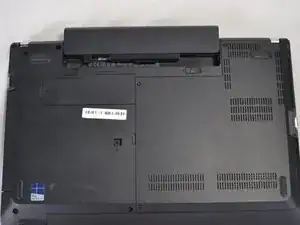

    • Remove the battery.

  3. 5MiQUG1KTBQcZb1j

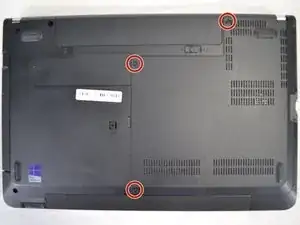

    • Remove the three 1.2mm Phillips #00 screws from the bottom panel.

    For me a Phillips #1 was the first bit with a tight fit (testet PH #00, #0, #1).

    Till -

  4. p25JHtwVxrRPsQuu

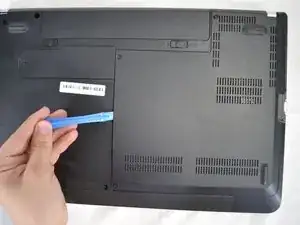

    • Use a plastic opening tool to pry off the bottom panel.

  5. ZifC2bMeq2rb6BHa

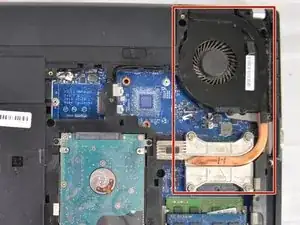

    • Heatsink and fan are connected. You have to remove both at the same time.

    • The heatsink and fan are found on the right side.

  6. s2LlqnVeIRN3qC1Q

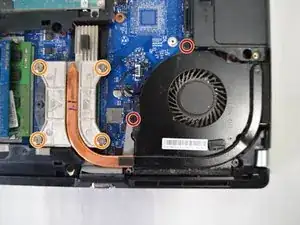

    • Remove the two 1mm Phillips #0 screws from the fan.

    • Unscrew the four 2mm Phillips s#0 screws from the heatsink.

    • The screws on the heatsink will stay attached to it.

  7. EEIQWAKHqO3KsZLV

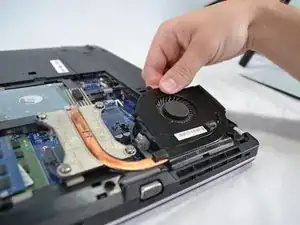

    • To remove the heatsink and fan, pull the fan upwards and towards the center.

Conclusione

To reassemble your device, follow these instructions in reverse order.
