This guide will help you remove the speakers from your Lenovo Thinkpad Twist s230u. The speakers are what your computer uses to play audio, so you will probably notice if there is something wrong with them quickly. Good speakers generally last a long time (usually longer than you will keep your device for), but there is always a possibility that your speakers could go bad. If you need to replace your speakers, this guide is for you. For more information on diagnosing problems you may have, visit our troubleshooting page.
-
-
Flip the laptop over.
-
Using a Phillips #1 Screwdriver, unscrew the screw on the bottom left corner.
-
-
-
Use a spudger to loosen the keyboard around the edges.
-
Carefully push the keyboard towards the screen to unlatch it.
-
-
-
Open the small black flap on each of the ribbon cables. It should lift with a slight effort.
-
Pull out the ribbon cables and remove the keyboard from the device.
-
-
-
Flip the device back over and open the top.
-
Use the Phillips #1 screwdriver to remove the seven silver screws.
-
Disconnect the three cables inside the case.
-
Lift up the brown tab and disconnect the ribbon cable.
-
-
-
Close the lid and turn the device around.
-
Use the iFixit Opening Tool to lift up and remove the tab on the back.
-
-
-
Turn the device back around and reopen it.
-
Use the iFixit Opening Tool to disconnect the top of the case from the bottom.
-

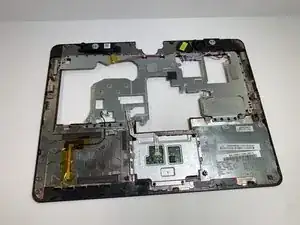

Lift up the top of the case and slide it out from under the screen.
-
-
-
Flip the laptop cover over.
-

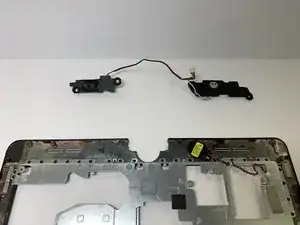

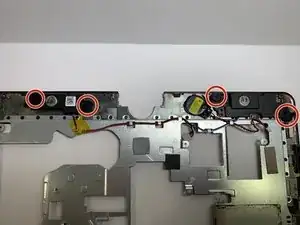

Using a Phillips #1 Screwdriver, remove the four screws holding the speakers in.
-
To reassemble your device, follow these instructions in reverse order.
