Levoit Core 300-RAC Control Board Replacement

Scritto Da: Mustafa
  • Commenti: 0
Levoit Core 300-RAC Control Board Replacement

Difficoltà

Easy

Passi

4

Tempo Necessario

15 - 25 minuti

Introduzione

The control panel contains buttons that allow the user to power the device on and off, select the fan speed, run time, display brightness, night mode, the display lock, and the air filter status light. If any of these buttons or lights are malfunctioning, use this guide to replace the control board of your Levoit Core 300-RAC air purifier.

Before you begin, make sure to turn off your device and unplug it from the power outlet.

Strumenti

  1. 1dp4dtt6qxOQmrGS
    1dp4dtt6qxOQmrGS
    NOJbEChXoywLONYQ
    NoNeLE4cNDfUYIoX

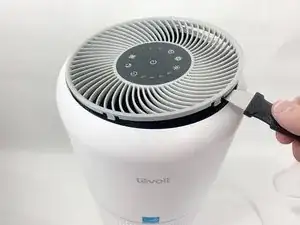

    • Make sure the device is turned off and unplugged before disassembling it.

    • Insert the Jimmy between the gray grille cover and the top of the device.

    • Work your way around the grille cover with the Jimmy to release the clips holding it in place.

    • Take note of the placement of the clips, as they are keyed and need to go back in the exact way they came out.

    • Remove the grille cover gently as it is connected by a ribbon cable.

    • Be careful not to put too much strain on the ribbon cable as it may break.

  2. skD6nvk4T5Kj3K6E
    skD6nvk4T5Kj3K6E
    2n2PXEGGsybRvcSk
    5lZIUHSVQQRuuJEP

    • Squeeze the tab on the connector to release the bundled cable from the control board.

    • The connector should come out fairly easily, so do not force it. Pulling too hard could damage the connector.

  3. 236pBymVEIIOguF1
    236pBymVEIIOguF1
    rn12GhD2GIFYRuoO

    • Gently bend the gray plastic cover to release the control board.

    • There are several hard tabs holding the control board in place.

  4. KjtJUI6bBohdmlQC
    KjtJUI6bBohdmlQC
    LKecxTIUXuPBntIV
    y5m6lMkAXfDd2VMV

    • Lift the control board from the gray plastic cover.

    • Take note of the orientations of the buttons, as that will help during reassembly.

Conclusione

To reassemble your device, follow these instructions in reverse order.
