Levoit LV-H132 Motherboard Replacement

Scritto Da: Darryl Francis
  • Commenti: 0
Levoit LV-H132 Motherboard Replacement

Difficoltà

Moderate

Passi

8

Tempo Necessario

15 - 35 minuti

Introduzione

If the control panel on your Levoit LV-H132 device is not working when it's connected to the power outlet, then it is time to replace the motherboard. Is the device overheating, producing strange noises, or smell burnt? Then the motherboard must have short circuited. Other causes could be that it has gone bad or gone old.

  1. WiyVqumwHT1exTRF
    WiyVqumwHT1exTRF
    UwmFGqV3nO1TfoTD

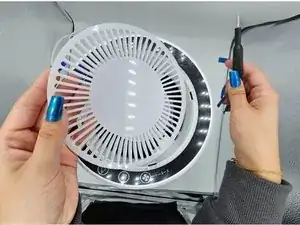

    • Pry off the plastic top using a metal spudger.

  2. f3qXsLSKGKnLyFpZ
    f3qXsLSKGKnLyFpZ
    eWl4bOl4SnIhwg5u

    • Remove the three 1.2 mm screws with a Phillips #1 screwdriver.

  3. ePYBHDm2XGCJ6RLx
    ePYBHDm2XGCJ6RLx
    uf51fqGES2i1oluK

    • Disconnect the top half from the bottom.

  4. 5AiVxMLfILMaHwCX
    5AiVxMLfILMaHwCX
    OIiS4NeULJCWaKVM
    fr3JAPZvDR4NfsEm

    • Disconnect the circuit board cables (one cable on each side).

  5. GuxAs3JbgQSMusVE
    GuxAs3JbgQSMusVE
    bWTchcxGuj5afdD2

    • Remove the black plastic piece.

  6. lpVF2pQFVmJgnUIJ
    lpVF2pQFVmJgnUIJ
    eiwyOnL1Zt5ZliOw

    • Remove the two 5 mm screws that hold the motherboard vertically with a Phillips #1 screwdriver.

  7. DoIwltFYFsohVaQh
    DoIwltFYFsohVaQh
    AiVFKjkQRHUTZQtT
    COatJMTx13JFMVkY

    • Remove four 5 mm screws from the motherboard cover with a Phillips #1 screwdriver.

  8. AXZeFjOcgHpFMlEw
    AXZeFjOcgHpFMlEw
    HngKGaMsFr3ouTAs

    • Remove two 6 mm screws that hold the motherboard in place with a Phillips #1 screwdriver.

Conclusione

To reassemble your device, follow these instructions in reverse order.
