LifePrint 3x4.5 Battery Replacement

Scritto Da: Jacqueline Broderick

Commenti: 6

Difficoltà

Moderate

Passi

Tempo Necessario

Nessuna stima

Introduzione

The Lifeprint 3 x 4.5 uses a rechargeable Lithium ion battery. In the case that the Lifeprint won’t charge, replacing the rechargeable battery is a potential solution to allow your Lifeprint to turn on.

Strumenti

Passo 1

Place one hand on the top cover and one hand on the bottom portion of the LifePrint.
While having the LP logo on the printer facing away from you, push the top cover away from you until it can't be slid away any further.

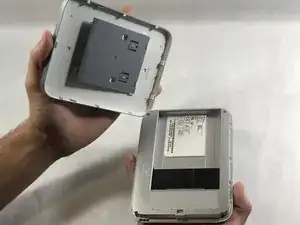

Pull the cover with the LP logo up to separate it from the rest of the printer.

Possibly have a closed picture of the printer with an arrow of which way to push the top cover. Then have this picture second.

Ed LaLumiere - 06/12/19

Passo 2

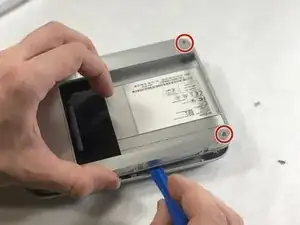

Using a Phillips #0 screwdriver, remove the four 15 mm screws connecting both sections of the device.
Use an opening tool to remove the inner cover from the printer.

Passo 3

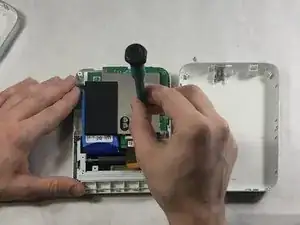

Remove three 4mm Phillips #0 screws connecting the metal shield covering the battery.
Slide out the white power connector with two red wires, two black wires, and one yellow wire from the terminal connected to the circuit board.
Apply pressure gently and slowly from underneath the battery from the plastic.

Identify which screws are being taken out and where the wire connectors are using ifixits guidelines (markup colors in order for each step (ROYGIBV) ).

Ed LaLumiere - 06/12/19

Passo 4

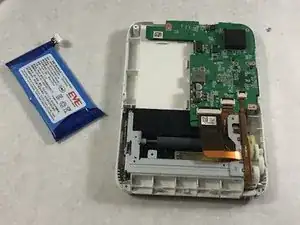

Remove the battery from the printer.

I feel like your pictures are out of order with your descriptions. because step 2 needs a picture of the removal of the connector and step 4 has the battery out but step 3’s description is about putting the battery back in.

Ed LaLumiere - 06/12/19
