Lifetime 4-Foot Adjustable Table Leg Replacement

Scritto Da: Aphason Aberham
  • Commenti: 0
Lifetime 4-Foot Adjustable Table Leg Replacement

Difficoltà

Easy

Passi

6

Tempo Necessario

10 - 15 minuti

Introduzione

This is a guide will show you how to fix a detached leg from a 4-foot adjustable folding table from Lifetime. Whether it's from excessive weight, gradual deterioration, or accidental impacts, the chances of table leg damage increases with use. This tutorial is designed to help people understand what to do if the table legs become detached.

  1. fAigQBCq6HA6AJXw
    fAigQBCq6HA6AJXw
    OVXaYVUtBCb5AKyZ
    6yH1HRtTameMKRJq

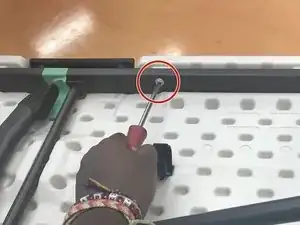

    • Use the 6 mm Flathead screwdriver to remove the four aluminum slotted screws located on the edges of the table.

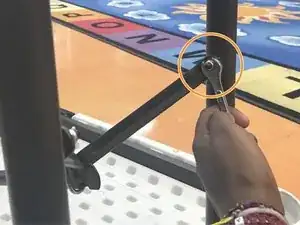

    • Use a 5/32" Allen Wrench or 19 mm wrench to remove the two stainless 8-18 steel hex screws from the braces of the table.

  2. vml51WuKELxc1a1U
    vml51WuKELxc1a1U
    el4UrOY3Q1oUpGTV
    cKJrwRrMcet3fm1C

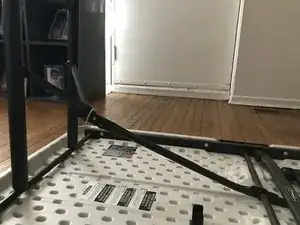

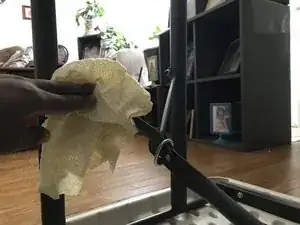

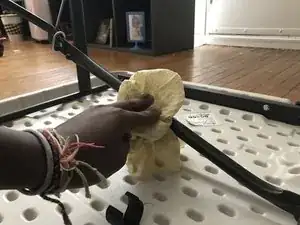

    • Clean any glue or adhesive from the braces and hinges before putting it into place.

    • It’s important to clear the screw holes of any material, so that the screws can fit without obstruction.

  3. MdxBQZVyUnJvBoml
    MdxBQZVyUnJvBoml
    aA55t2E3ocYww3sP
    IgJeuXEuRYmfUUXu

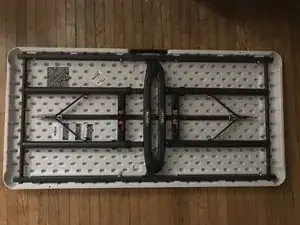

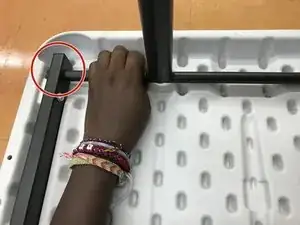

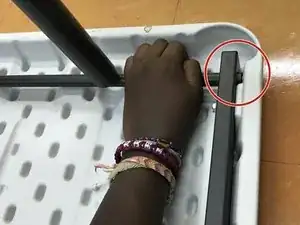

    • Align the screw holes of the braces with the new leg by inserting it into the frame.

    • While aligning, make sure the new leg fits into the frame slots.

  4. fhwSO6tD3X5WNT5A
    fhwSO6tD3X5WNT5A
    FPuZUBqbGARsWeHp
    uxHXXjFUYGZglC2E

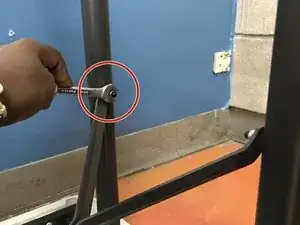

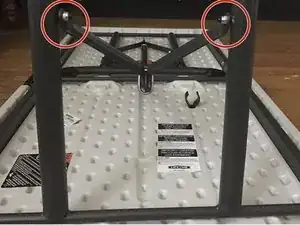

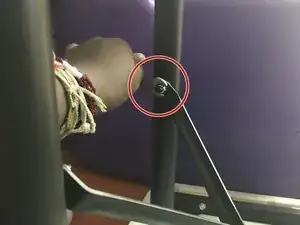

    • Place the two stainless steel hex screws inside of the screw holes located on the leg, and secure each screw with your Allen key or wrench.

  5. MXs4vLBGxMbBidDb
    MXs4vLBGxMbBidDb
    aTVhuy3yeqCwmZTV
    kXUpgfuJ1cOGxoEM

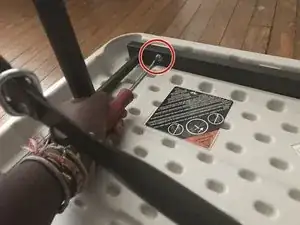

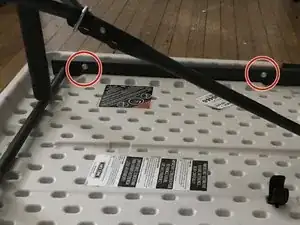

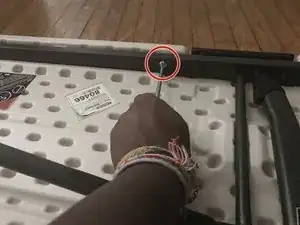

    • Screw the four slotted screws back into the frame using a 6 mm flathead screwdriver. Ensure that the entire side where the new leg is being inserted is securely connected to the table once again.

  6. grMyCm1scLDAvpR5

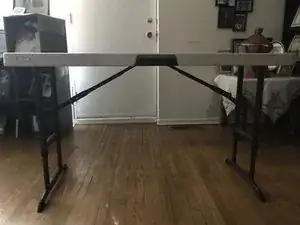

    • Test out the table by unfolding it, and setting it up in a standing position.

    • If the leg is not aligned properly, has loose screws, or missing some screws, make the proper adjustments before using it.

Conclusione

To reassemble your device, follow these instructions in reverse order.
