Lite-On LightScribe SHM-165H6S Drive Belt Replacement

Scritto Da: James Biggs
  • Commenti: 3
Lite-On LightScribe SHM-165H6S Drive Belt Replacement

Difficoltà

Easy

Passi

7

Tempo Necessario

5 minuti

Introduzione

If your drive is having problems opening, the drive belt may have broken or fallen out of the track and you will need to replace it.

  1. kjV4GRiGoMMDnEQQ
    kjV4GRiGoMMDnEQQ
    yHsuQfGnp36GRjrs

    • Insert an open paper clip into the small hole on the left side of the faceplate.

    • After the tray opens, extend it fully.

  2. YpATImlHsjBjuTA4
    YpATImlHsjBjuTA4
    tV1JEGHJJugkju2M
    h1UTTOvVJHehjWkA

    • Use an opening device to push in the black tabs on the left, right and bottom of the outer chassis to unhook the faceplate.

  3. U1ZSBnadgKmwZOL5

    • Pull the faceplate away from the main chassis.

  4. Hl3gDZkGvONnDqYf

    • Unscrew the four 8.5 mm screws on the bottom chassis using a Philips #2 screwdriver.

  5. mtKrVUWRrTtZguQA
    mtKrVUWRrTtZguQA
    ywZoobueOoBZY2Us

    • Lift the top and bottom chassis straight up in order to remove them.

  6. PBjRRZk4lJAQT3Fr
    PBjRRZk4lJAQT3Fr
    sPhSDvWMYLHJcMvj

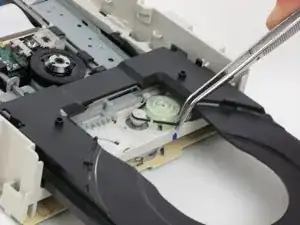

    • Extend the tray so that the belt is accessible.

    • Remove the old belt using tweezers.

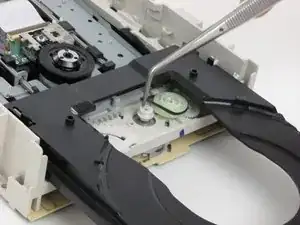

  7. ylBqQkagb3UaO6gD
    ylBqQkagb3UaO6gD
    ZnQLGeqoWfx5NiBk

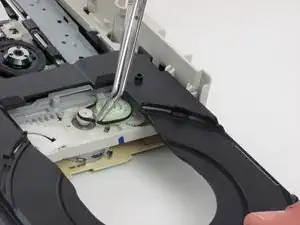

    • Carefully replace with the new belt by wrapping it around the larger gear first, followed by the smaller gear.

    No parts? What about the belt? Where do you get these tiny things?

    Scott Whitehill -

    Use a rubber band or an plumbing o-ring

    lilleyen -

Conclusione

To reassemble your device, follow these instructions in reverse order.

Autore

James Biggs

Membro da: 12/10/11

596 Reputazione

Un commento

In case anyone is interested, I used a 11/16” OD x 9/16” I.D. x 1/16” wall, for this exact drive (was a tight fit) and seems to work perfect.

I was so tired of replacing rubber bands every few months!

And yes this is an “O-ring”  it should be less than a buck five eighty at your local big box hardware store.

Jim Mccalb -
