Introduzione

If the faceplate has become broken or cracked, you may want to replace it.

  1. UkyfVK1V2goyYnY2
    UkyfVK1V2goyYnY2
    1jOLpUESfrLiJSMo

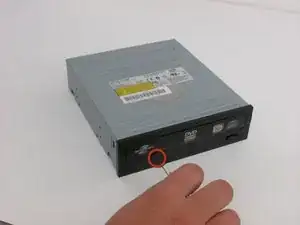

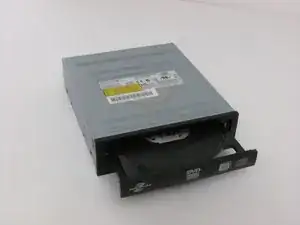

    • Insert an open paper clip into small hole on left side of faceplate.

    • The tray should click open, use your hands to gently extend it fully.

  2. KPPahPNAKJXlgHTU
    KPPahPNAKJXlgHTU
    fLQbrS4X6FMlXbgX
    yH1NnnbuOIpwAAmI

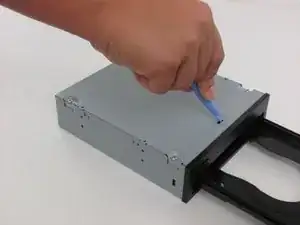

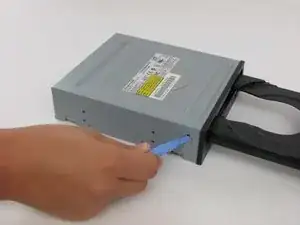

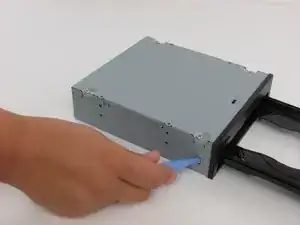

    • Push in black tabs on left, right and bottom of outer chassis to unhook faceplate.

  3. 2jakbVhF5hMCPxXh

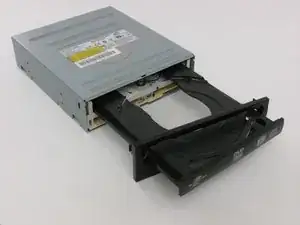

    • Pull face plate away from main chassis.

  4. gKrAXUPLImOlOH21
    gKrAXUPLImOlOH21
    S4gm2csRrEspYpgH
    Bis5oVaQ1PMiPehV

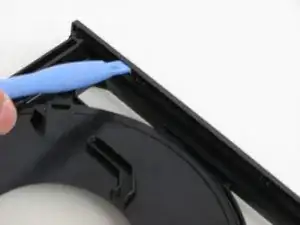

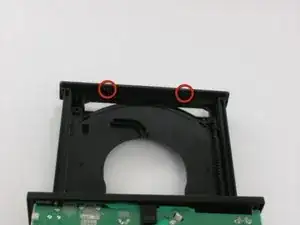

    • Locate the two tabs on the underside of the tray cover.

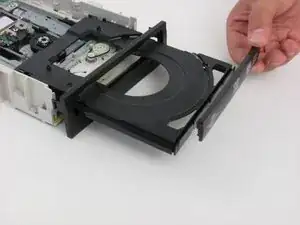

    • Pry the tabs loose and remove cover.

  5. UZTRbHYV5ZaDJL5Z

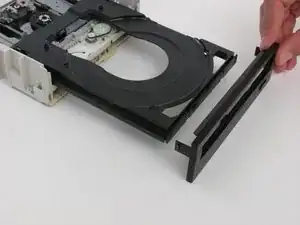

    • Remove and replace faceplate.

Conclusione

To reassemble your device, follow these instructions in reverse order.
