Little Wonder 4 HP Honda Pro Edger 62320001 Rev B Blade Replacement

Scritto Da: Adam O'Camb
  • Commenti: 1
Little Wonder 4 HP Honda Pro Edger 62320001 Rev B Blade Replacement

Difficoltà

Moderate

Passi

3

Tempo Necessario

2 - 5 minuti

Introduzione

Use this guide to remove or replace the blade on a Little Wonder 4 HP Honda Pro Edger 62320001 Rev B.

  1. ZxmnFFYPk6Gsviq6

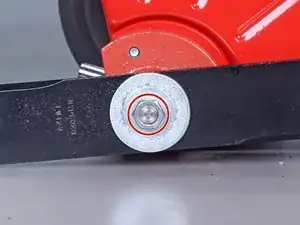

    • Before you begin, make sure the edger is switched off and the red throttle adjuster is in the disengaged position. Disconnect the spark plug.

    • Use a 3/4 inch socket and ratchet to remove the nut securing the blade.

    • Brace the left side of the blade against the ground in order to loosen the nut. Brace the right side of the blade against the ground for tightening.

  2. RIJLEJGnniEsrLpe

    • Remove the blade washer.

    The nut just keeps spinning with the left side of the blade down to the ground. Why is the nut still spinning? The belt also moves at the same time the nut is moving?

    Francisco Estrada -

  3. LwWoVpYrBhSZniGG

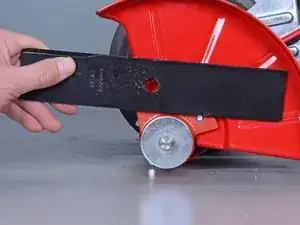

    • Remove the blade.

Conclusione

To reassemble your device, follow these instructions in reverse order.
