Logitech G915 TKL G1-G8 Key Replacement

Difficoltà

Moderate

Passi

5

Tempo Necessario

55 minuti

Introduzione

Use this guide to remove and replace one of the G keys on the Logitech G915 TKL keyboard. A G key may need to be replaced if it's loose and not registering inputs properly, or simply broken for one reason or another.

A Phillips #00 Screwdriver is necessary to complete this guide.

  1. JSPytXsMdfxPIsum
    JSPytXsMdfxPIsum
    OW515jY6uaAVTpfJ
    4rZOjprrXgDjW1rA

    • Remove all the keycaps.

    • While it can be done barehanded, use of a flat tool to remove the keycaps or use a keycap puller is recommended to prevent damage.

  2. vHR1QsTcOSTKGuuS

    • Unscrew the front 2mm #00 Phillips screws found here.

  3. LGXvLNxffrFZDNSp
    LGXvLNxffrFZDNSp
    qmoj4HuJ21qGYYxh
    xQHMeJryaFGMrqbR

    • Remove the battery.

    • This will require the removal of the back sticker and unscrewing the two 2.5mm #0 Phillips screws circled.

  4. x1r1ZUY6laGcFdIo

    • Remove the remaining 2mm #00 Phillips back screws.

    • 3 screws are hidden under the rubber rests of the keyboard.

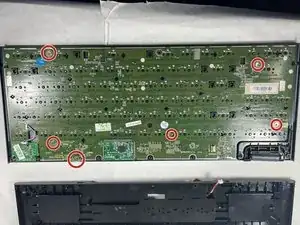

  5. aWvhXgxCTKs4OTGC

    • Remove the 2mm #00 Phillips motherboard screws.

    • The G1-G8 keys are held in place by the motherboard itself. Once the motherboard is detached, they can be easily removed and replaced by hand.

Conclusione

To reassemble your device, follow these instructions in reverse order.
