Logitech G920 Driving Force Back Pedals Replacement

Scritto Da: Aiden Muse
  • Commenti: 0
Logitech G920 Driving Force Back Pedals Replacement

Difficoltà

Moderate

Passi

10

Tempo Necessario

Nessuna stima

Introduzione

This replacement guide will help you in replacing a faulty or broken back pedal on the Logitech G920 Driving Force. The following steps can be used for any of the three pedals that need to be replaced.

  1. HF4HkR2RmkelbnGq

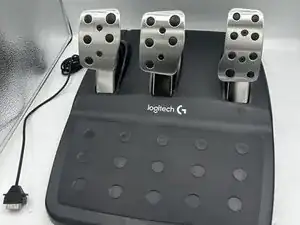

    • Locate the pedal you need to replace.

  2. kHKFGTLjhYjEOFd4

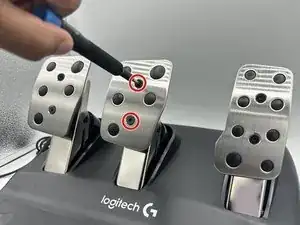

    • Use a Hex 2.5 screwdriver or Allen key to remove the two 30 mm center screws in the pedal.

  3. ZjXwgQUZ1ujJ2hoq

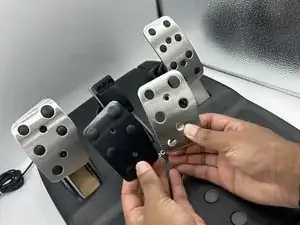

    • Remove the pedals from their stand.

    • Repeat steps 2-3 until all pedals needing replacement are removed.

  4. cmOtOVProCoqePeS
    cmOtOVProCoqePeS
    LHK34YKXOnxAwfPW

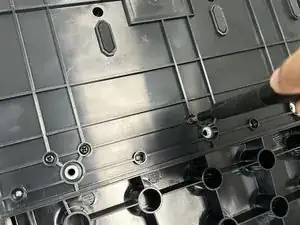

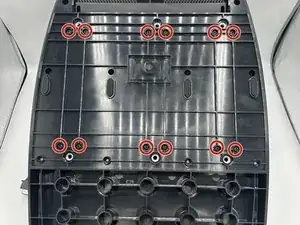

    • Remove the 12 12mm screws from the bottom of the device using a Phillips #1 screwdriver.

  5. ks2mBqU4yaRYRSNt

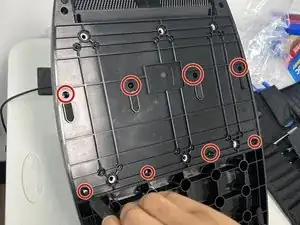

    • Remove the eight 12 mm screws from the bottom of the device with a Phillips #0 screwdriver.

  6. mAreZ1E5SHF4Y4Hc
    mAreZ1E5SHF4Y4Hc
    uviybMBn1UhPDDyB
    pVJIfNPPBX4OcqUR

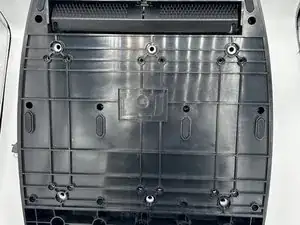

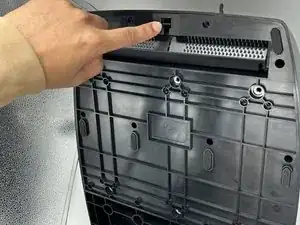

    • Push down the switch found in the hole at the top of the underside of the pedal board.

    • This opens the carpet-hold to access more screws.

  7. BCkiXxnRBkFOadA2

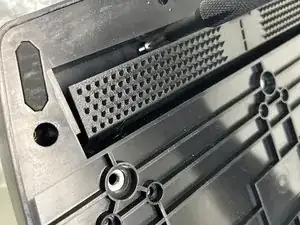

    • Remove the two 14 mm screws behind the carpet hold with a Phillips #0 screwdriver.

  8. YIsZUDWYZtgJBDaa
    YIsZUDWYZtgJBDaa
    4PKFBW2ipFpk3Qac

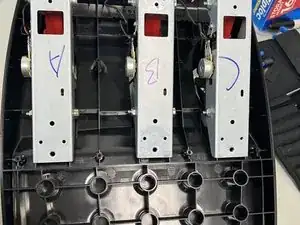

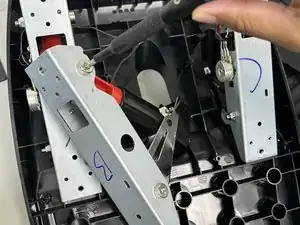

    • Remove the pedal back that matches the pedal front removed in step 3 .

    • This image is not upside down. When removing the back panel piece, the lettering on the inner pedal mechanism will appear this way.

  9. ANSUi5bf3KoZwl3e
    ANSUi5bf3KoZwl3e
    oD1U4vUEjOypWvLB

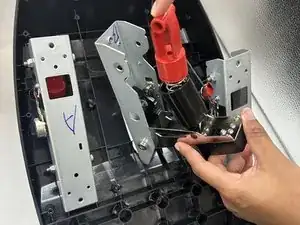

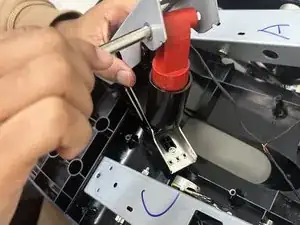

    • Remove the washer and bolt at the top of the red piece on the pedal back.

  10. eZyFZvLa55qbRHXG
    eZyFZvLa55qbRHXG
    tExxCJuiG1RJVi3L
    sCdMsKGb6Ux5MHtc

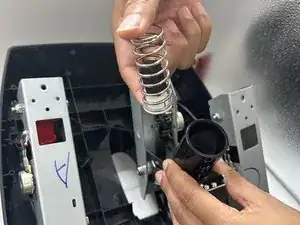

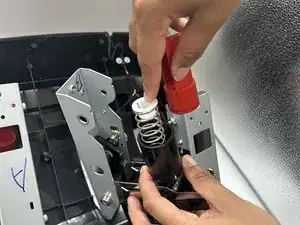

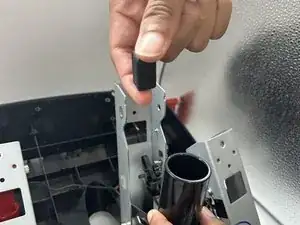

    • Remove the red piece, spring, and block within the pedal back.

    • Replace the necessary part.

Conclusione

To reassemble your device, follow these instructions in reverse order.
