Logitech UE Boombox Battery Replacement

Scritto Da: Breean Mokede
  • Commenti: 2
Logitech UE Boombox Battery Replacement

Difficoltà

Very easy

Passi

4

Tempo Necessario

5 minuti

Introduzione

We are going to guide people through the replacement of the lithium ion battery pack located inside the Logitech UE Boombox.

  1. RZ3klwaOWhKrnn46
    RZ3klwaOWhKrnn46
    5uwXclMWsHXwWQNs

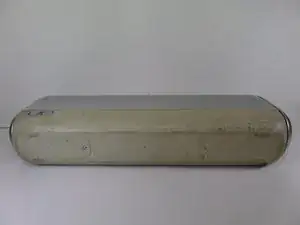

    • Place the Boombox on the side with its bottom facing you.

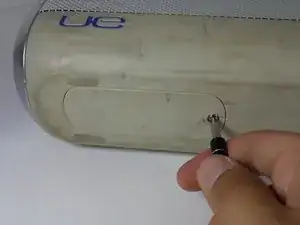

    • Remove one 8 mm Phillips #2 screw.

  2. FHUNehBNnFc5BvdY

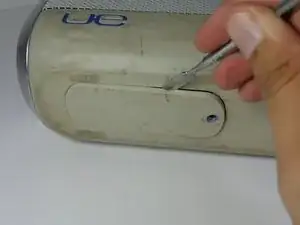

    • Pry off the rubber battery cover using a metal spudger.

  3. Q1L1AGGnNI6JJ6HC
    Q1L1AGGnNI6JJ6HC
    VyK3hJKRQrnFBdx1

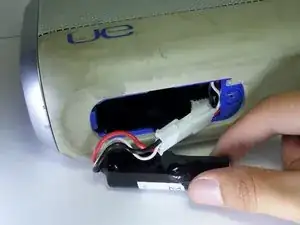

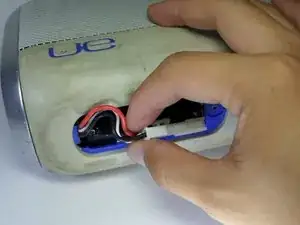

    • Expose the battery by gently pulling it away from the battery cavity.

  4. pMrGJAsRxScIUZDC
    pMrGJAsRxScIUZDC
    PDdAJ1d6bJZwsYJM
    BLwVnUGUjCIy5jvL

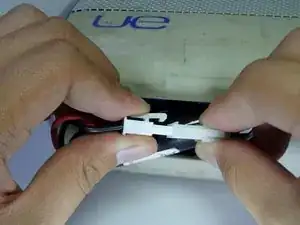

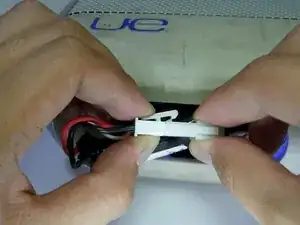

    • Firmly press down on the end of the latch and pull connector apart.

    I’d like to know what is the other connector? Is it possible to upgrade the battery to two cells?

    Max_Power -

Conclusione

To reassemble your device, follow these instructions in reverse order.

Autore

Breean Mokede

Membro da: 15/09/16

282 Reputazione

Un commento

Where can I purchase this replacement battery and a power adapter for this exact model of speaker

phonse4u -
