MSI GE72 6QF Apache Pro Keyboard Replacement

Scritto Da: Riley Smith
  • Commenti: 14
MSI GE72 6QF Apache Pro Keyboard Replacement

Difficoltà

Moderate

Passi

32

Tempo Necessario

1 - 2 ore

Introduzione

With how the keyboard for this laptop is fastened, replacing it is easier than in some cases. with just screws fastening it in place there is no need to solder when replacing the keyboard.

  1. BDFnSAFl1Gk1Jk2U
    BDFnSAFl1Gk1Jk2U
    13TjDpO3I236JgFN

    • Make sure the laptop is off and unplugged (not charging).

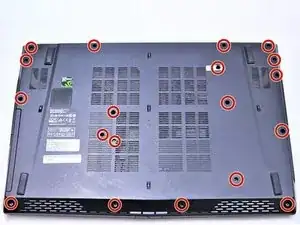

    • With the laptop closed and upside down, unscrew the nineteen 5.5mm Phillips #1 screws that keep the back cover in place.

  2. j6NB2FI1vkDXraFl

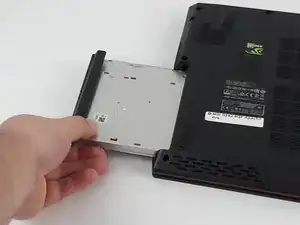

    • Slide the optical drive out of the laptop.

    Good day sir pls am urgently look for the complete cd rom for this laptop msi 1791. Please if u can get some for me text me on 7186034112

    rauffsulemane -

    Or send me and email rauff191@gmail.com

    rauffsulemane -

  3. okGXAbMsbi4eP1qy

    • Use a Phillips screwdriver to remove the three screws along the edge of the optical drive bay.

  4. RGkd2kWjLEHVVM3W
    RGkd2kWjLEHVVM3W
    qSsX6JjgEMQ2CVsJ

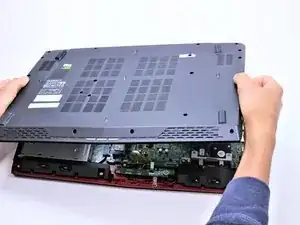

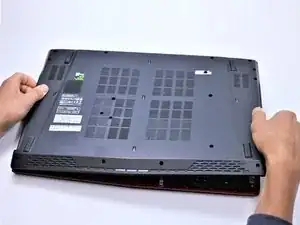

    • Using your fingers, gently loosen the edges of all four sides of the back cover.

    • Gently pull off the back cover.

  5. OyfUq2FAEhU2PoJg
    OyfUq2FAEhU2PoJg
    bm3I5K4p1Xu62XPG

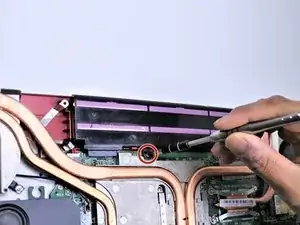

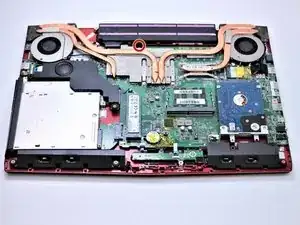

    • Unscrew the single 5.5mm Phillips #1 screw keeping the battery secure.

  6. p46khpLZ5VBkIVYK
    p46khpLZ5VBkIVYK
    RZGTfSPitmPqABIn

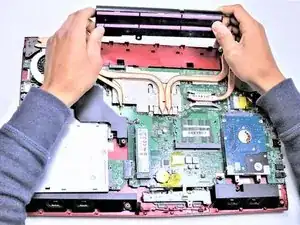

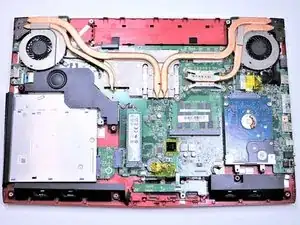

    • Grab the battery with your fingers and gently pull it up and away from the rest of the laptop.

  7. XDTNpDHqQ1sRENHB
    XDTNpDHqQ1sRENHB
    2NDKuZYSo4qBMFvv
    yYXeegRTQ1qUj1TE

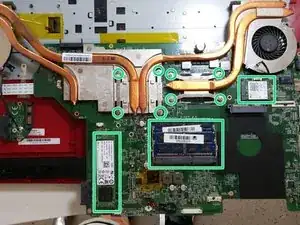

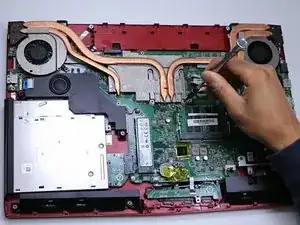

    • If you are replacing only the keyboard, you can skip to step 18, and then skip the WiFi adapter removal step. The CPU fan, m.2 SSD, RAM and WiFi adapter (marked in green) will all come off with the main board, giving you access to the keyboard.

    • Use a Phillips #1 screwdriver to remove the ten 5.5mm screws.

    • Remove the last two 5.5mm Phillips #1 screws, and remove the washers around them.

  8. hTVjysevRIHvbJIT
    hTVjysevRIHvbJIT
    OKwpBt3p6rDiEOAm
    TTIsp44CByqMxOcT

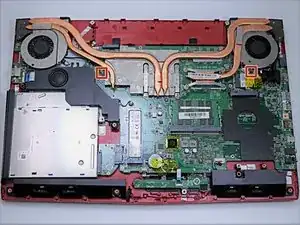

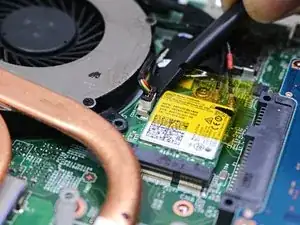

    • Unplug both of the fan power cords from the laptop using a spudger.

  9. Y3mVkHEcBbYSuFvV
    Y3mVkHEcBbYSuFvV
    OeKgeULbOjrVuDGu

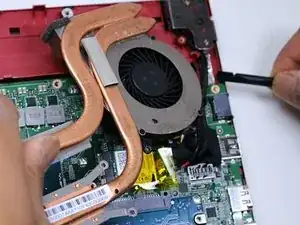

    • Continue to use the spudger to carefully separate the wires of the power cord from the laptop.

  10. PV6EvYjAcTBXWcRf
    PV6EvYjAcTBXWcRf
    HZO6mTxXwQ2EOFvN

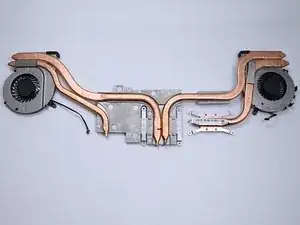

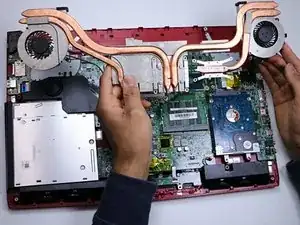

    • Fully remove the fans from the rest of the laptop.

    what is the thing that the fans are held in called like that big metal thing i need to get that replaced i think and i dont know how ot search for it

    BW NINOQUIMPS -

  11. qC2pC6KohKMH1OX2
    qC2pC6KohKMH1OX2
    kInxnGxgkWOqgNwT
    RSVy6vfe4MEVFeWq

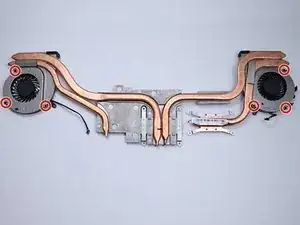

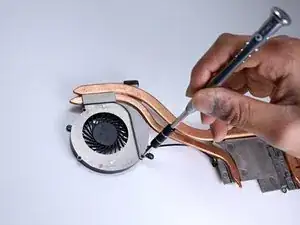

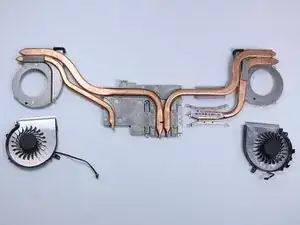

    • Using a Phillips #00 screwdriver, remove the six 5mm screws.

    • Separate the fans from the silver fan covers.

    Should be mentioned that doing this will ALSO require repasting the CPU/GPU!!!

    Not doing this step will result in improper cooling more than likely. - CRITICAL STEP

    Mame A -

    Thanks for the heads up

    Daniel Martin -

  12. s1lwXmE1DjVwMI1a
    s1lwXmE1DjVwMI1a
    SJxC6YOnjxbMGHhO

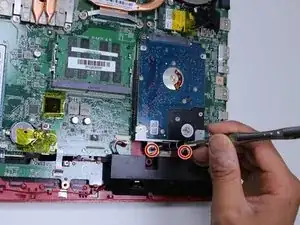

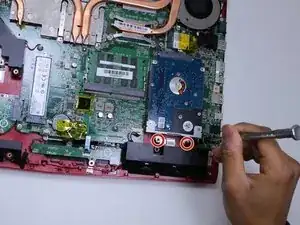

    • Remove the two 5.5mm screws with the Phillips #1 screwdriver.

  13. OmEOYA1SQJDMeYep
    OmEOYA1SQJDMeYep
    NHYQlyAqBh2P4RqG

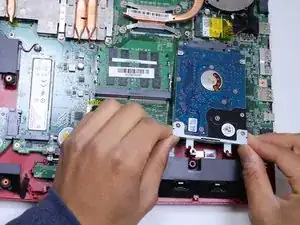

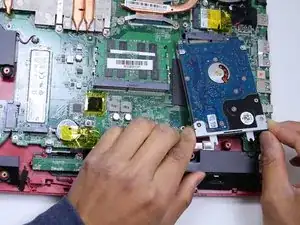

    • Gently pull out the hard drive by wiggling it from right to left with your hands until it is removed.

  14. NWQgAgmGpxv5oiBe
    NWQgAgmGpxv5oiBe
    ZJs2qsynZZSbbsuI
    GeVE4euwbOxbBLc2

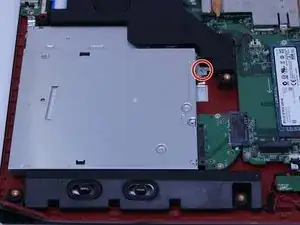

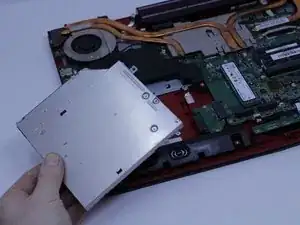

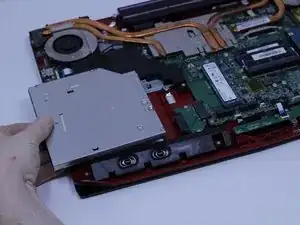

    • Carefully slide the Optical Drive off of the SATA connector.

    • The red marker shows the location for where the retaining screw comes through the back panel to hold the Optical Drive.

  15. iIXBU1vg4Bu1MPia
    iIXBU1vg4Bu1MPia
    IdeoKiR2ivaZna6Z

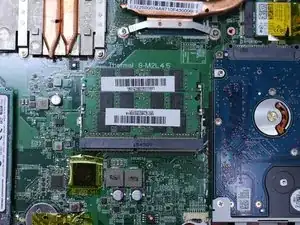

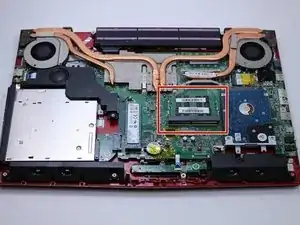

    • When you open the back cover, the RAM will be located as shown in the picture.

  16. AZNM5uLVSVJuDubn
    AZNM5uLVSVJuDubn
    dYDv1AAIZCytM3rY
    AqsUgOMvlxDUwhro

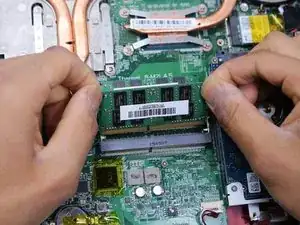

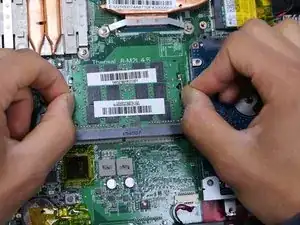

    • Press the hinges on the sides of the RAM chip as shown in the picture, in order to unlock it.

    • Carefully, slide it out at a 45 degree angle.

    • Don't press on the hinges too hard.

    • Be careful about the angle at which you're sliding out the chip.

  17. 6cHtdENX3MAJuBmK
    6cHtdENX3MAJuBmK
    WOdWZKkPVn64laCJ
    JcyUtcCRaIO6GkSt

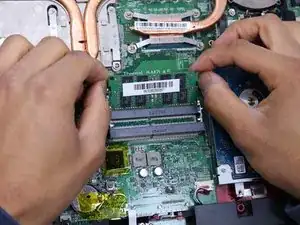

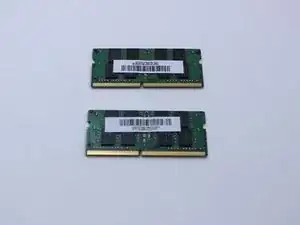

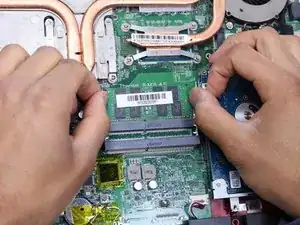

    • Similarly, press on the hinges on the sides of the other RAM chip, in order to unlock it.

    • Some laptop models might not come with two RAM chips, so if that is your case, you can skip this step.

  18. DvPCALfGOjDNMiDL
    DvPCALfGOjDNMiDL
    pGxhrgZAQOcHpBsP

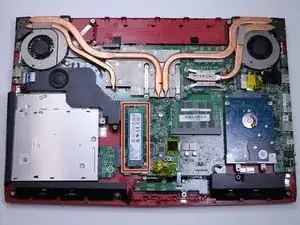

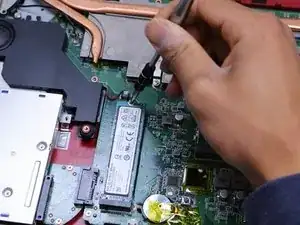

    • Remove the single 5.5mm Phillips #1 screw attaching the SSD to the laptop.

    what do i need to go to a bigger 256 ssd . will i need to program windows again? 3 yr. old msi ge72 6qf apache pro 17” thanks, Brian

    sixspdvett -

  19. XhvyjORRagKnYbwU
    XhvyjORRagKnYbwU
    REKRIWSrXy4euYnt

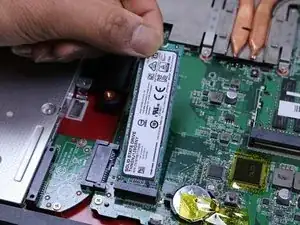

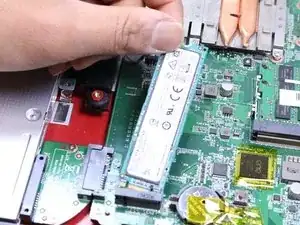

    • Pull out the SSD by gently wiggling it from side to side until it comes out.

    • If the old SSD you removed contains the operating system, then the new SSD must also contain an operating system.

    Thanks folks, I was most the way through the disassembly process and had to stop as the base cover would not fully release. There was a spot at the back left corner (if your were looking at the laptop keyboard from normal typing position (right back corner if you were working to remove the back cover from the bottom)). It seemed to be stuck, is there an insulating pad that might also be an adhesive when heated? I was forced to give up as I found no clips, latches or screws holding it in place.

    What was preventing the back corner of the cover from releasing please?

    Pete -

    Hello @welltech20 , I have the MSI GE72 VR, this model has the same chassis. When I opened the laptop, I noticed there are lot of clips retaining the bottom case. Also, there is the USB type C port is inserted in the bottom case. It's a little bit difficulte to open this laptop because the clips are very well attached and the side of the bottom case with the USB type-c port must be lift after the 3 other sides, because you need to slide the side of thé bottom case with the USB type C port to free the bottom case from this port, as this USB type C port is soldered to the motherbord and is inserted in the bottom case. Also be carfull when you will reasemble the laptop bottom case because of that. A plastic opening tool is very usefull to detach all the clips.

    Moreover, there is an hidden screw behind a waranty sticker on the bottom case perhaps there is one on your laptop too. There is lot us screws maintaining thé bottom case (14 on my laptop), ensure there is no remaining screws.

    Have a nice day

    Brendan -

    There are clips on the back corner too, they are a little bit difficult to detach the first time.

    Brendan -

  20. PYZ5pyMnXSluByek
    PYZ5pyMnXSluByek
    vZFqFbHyrClOgxMx
    BSSPbBMS4WLAhiDP

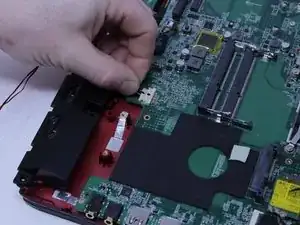

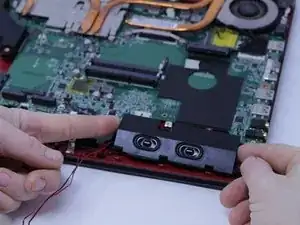

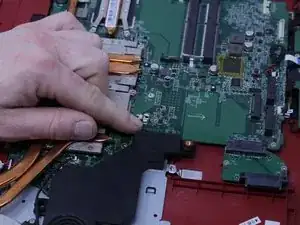

    • Pull upward to lift the front speakers and sub-woofer out of place.

    • Carefully slide out the connectors for both of the speaker systems.

  21. RdXyVwIVXrVClWof
    RdXyVwIVXrVClWof
    oaUgZnTImBH12KZd
    2RLSsikpjTMiBwIW

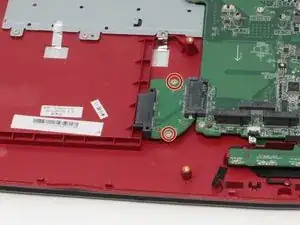

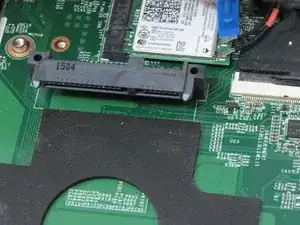

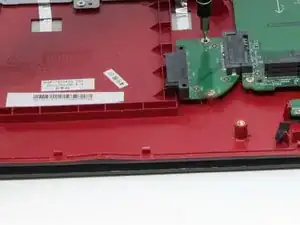

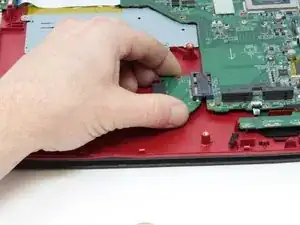

    • Use the Phillips #0 Screwdriver to remove the two 4mm screws that are holding the SATA connector in place.

  22. cDaFq6LhVLEG6Ew3
    cDaFq6LhVLEG6Ew3
    IC2SDFFyWTAqEeXF
    sAtRgTKPy5ZGRtSM

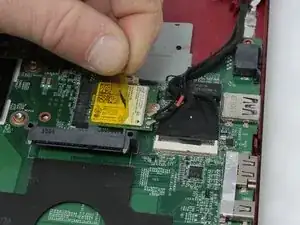

    • Remove the WIFI card by disconnecting the two coax cables and removing the retaining screw.

    • Try to preserve the tape that covers the WIFI card so it can be reapplied.

  23. 3Gmm4ODEuHY6nlKg
    3Gmm4ODEuHY6nlKg
    ETklnRBpTIZqUEun
    ISbNwxpvj6ZFOJqi

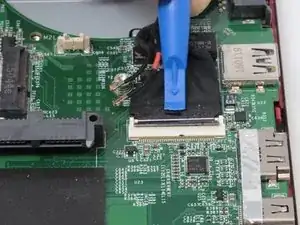

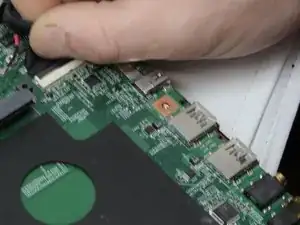

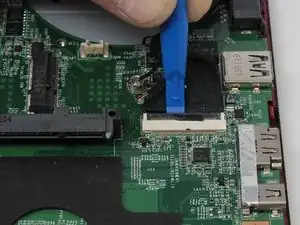

    • Use the plastic opening tool to pry up the connector that holds the display cable so it can be disconnected.

    • The connector for the display cable flips upward, but be careful because it is fragile enough to break.

  24. IUKbN2uEnqQbTuBj
    IUKbN2uEnqQbTuBj
    dTqtS5SacoNwvAx2

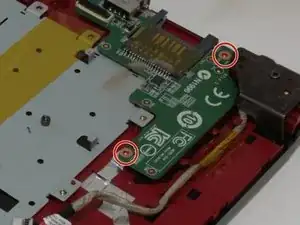

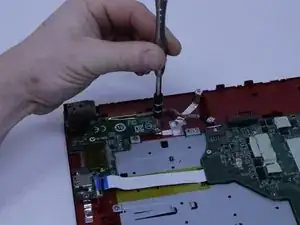

    • Remove the SD card reader by unscrewing the two 3 mm screws that hold it in place.

  25. OZPPGYbJ6xSsNphD
    OZPPGYbJ6xSsNphD
    GhRDSYOrfGWByITs
    EridH3OwKQkDCHUQ

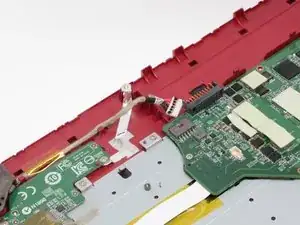

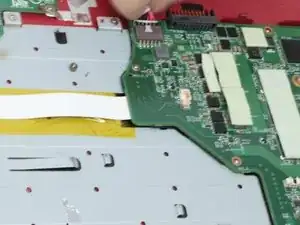

    • Remove the power and USB connectors that are connected to the left side of the motherboard by pulling them from the motherboard and SD card reader respectively.

    • The power connector pulls out without the chance of breaking, but the USB connector is another fragile flip-up style connector.

  26. PuSCbLeTM2qypq1n

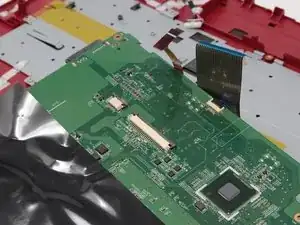

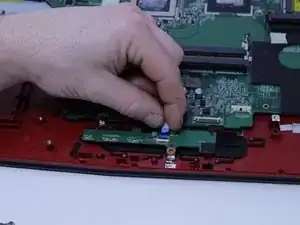

    • Disconnect the motherboard from the mouse key control board by pulling the connector out.

  27. 1EeSfXkK6RFEJ5n6
    1EeSfXkK6RFEJ5n6
    k6rB2peQB1inLDLy

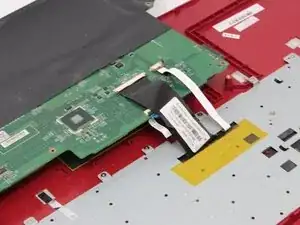

    • Disconnect the keyboard from the motherboard by carefully sliding the connectors out of the connections on the motherboard

    Steps 25 and 26 are out of order. You can’t remove the keyboard connectors before you remove the motherboard.

    Keith Melvill -

  28. bjUntiSlNped5BGe
    bjUntiSlNped5BGe
    WcnekoKYFSvWsoDH
    ApQy2isjOptyoHOc

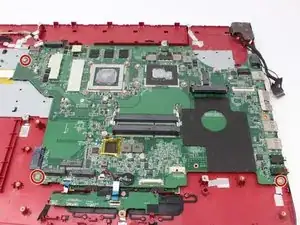

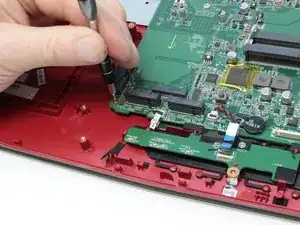

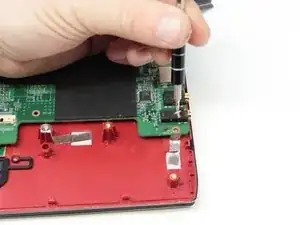

    • Use the Phillips #0 screwdriver to remove the three 3.8 mm standoff screws that retain the motherboard and carefully remove it.

  29. HKWPw3GKMpvYRroO
    HKWPw3GKMpvYRroO
    EsTJ5PTQXqbLYJ2O

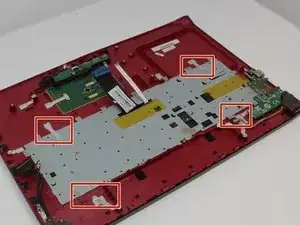

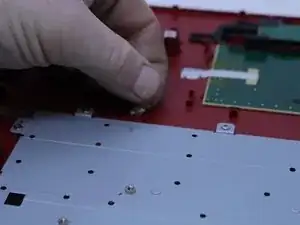

    • Peel the silver tape off of the keyboard back plate.

  30. U13EUqWYRgmaOTbM
    U13EUqWYRgmaOTbM
    nOPKIK5FLhqLqQDV
    DTuD1ILDqZCkK2Pg

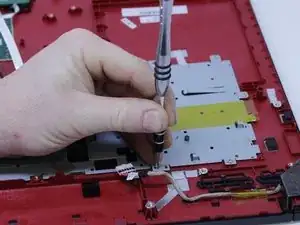

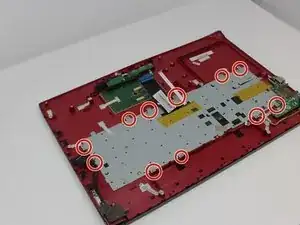

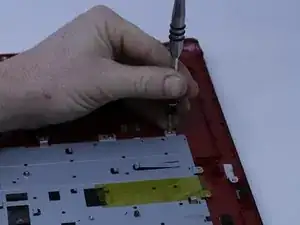

    • Remove the thirteen 3 mm screws that fasten the keyboard in place.

    My keyboard is plastic welded in. How do I remove this.

    Matthew Meola -

  31. RsrgAbP1L4J1Wa1u
    RsrgAbP1L4J1Wa1u
    fMQHRVGbFwqCHgdq

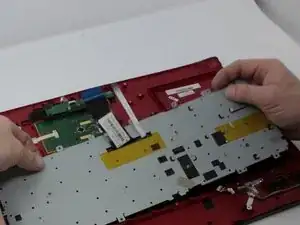

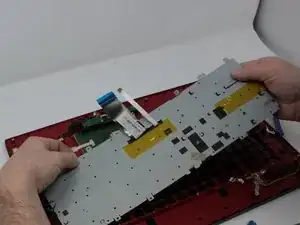

    • Carefully lift and slide the keyboard out.

  32. MZNAKYKqVhSmWERg

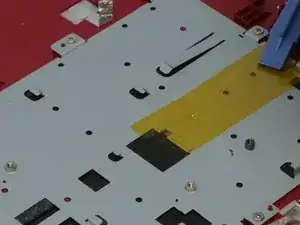

    • Peel the yellow tape off of the back plate to free the keyboard so it can be separated from the plate.

    • Preserve this piece of tape so that it can be used when swapping in the new keyboard.

Conclusione

To reassemble your device, follow these instructions in reverse order.
