MacBook Air 13" Late 2010 I/O Board Cable Replacement

Scritto Da: Andrew Bookholt
  • Commenti: 2
MacBook Air 13" Late 2010 I/O Board Cable Replacement

Difficoltà

Moderate

Passi

5

Tempo Necessario

Nessuna stima

Introduzione

Use this guide to remove your MacBook Air's I/O board cable.

  1. 3bTejPotVlS4MkaI

    • Before proceeding, power off the device, close the lid and lay it on a soft surface top-side down.

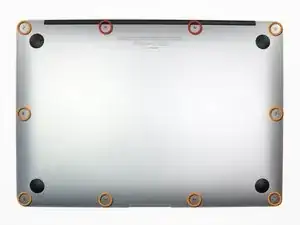

    • Remove the following ten screws:

    • Two 9 mm 5-point Pentalobe screws

    • Eight 2.6 mm 5-point Pentalobe screws

    • The special screwdriver needed to remove the eight 5-point Pentalobe screws can be found here.

  2. WwI3rtRnhTEHj54C

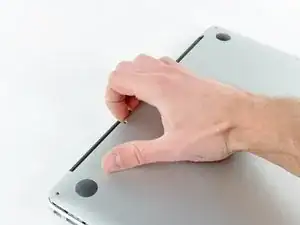

    • Wedge your fingers between the display and the lower case and pull upward to pop the lower case off the Air.

    • Remove the lower case and set it aside.

  3. CtyAZgC3dvRCcjK1

    • For precautionary purposes, we advise that you disconnect the battery connector from the logic board to avoid any electrical discharge. This step is optional and is not required.

    • Grab the clear plastic pull tab attached to the battery connector and pull it toward the front edge of the Air to disconnect the battery from the logic board.

    • Do not lift upward on the connector as you disconnect it.

  4. kpxaSggiRGXdYbjE

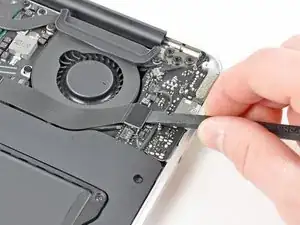

    • Use the flat end of a spudger to pry the I/O board cable connector upward out of its socket on the I/O board.

    Die nachfolgenden Schritte sind nicht erforderlich. Bitte bei Schritt 11 weitermachen.

    Volker -

    Es ist nicht erforderlich, IO-Board, Akku und Logic-Board auszubauen. Es genügt, die Antennen- das Kamera- und das Displaykabel zu entfernen und die Scharniere abzumontieren. Die Kabel können leicht an den vorhandenen Komponenten vorbeigezogen werden.

    Volker -

  5. JoLRPuB2CEeYNKPR
    JoLRPuB2CEeYNKPR
    PcuVr1BCTqIGgwtt

    • The following connector has an especially deep socket. Use care when disconnecting it.

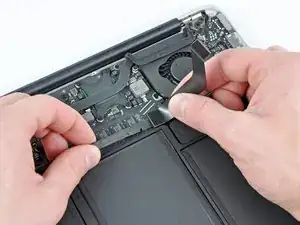

    • Carefully peel the I/O board cable from the top of the fan.

    • While gently pulling the I/O board cable upward near its connection to the logic board, use the tip of a spudger to pry upward on alternating sides of the connector to help "walk" it out of its socket.

    • Remove the I/O board cable.

Conclusione

To reassemble your device, follow these instructions in reverse order.
