MacBook Pro 13" Retina Display Late 2012 Headphone Jack Assembly Replacement

Scritto Da: Walter Galan
  • Commenti: 0
MacBook Pro 13" Retina Display Late 2012 Headphone Jack Assembly Replacement

Difficoltà

Moderate

Passi

2

Tempo Necessario

Nessuna stima

Introduzione

Prereq for removing the upper case.

  1. 44XrZoQEfJmSRy2C

    • Remove the two 3.4 mm T5 Torx screws securing the headphone jack to the upper case.

  2. 4PTCOWfP1CO4XRjb
    4PTCOWfP1CO4XRjb
    Vdc2kyPPxXb53nwT

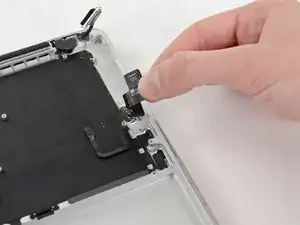

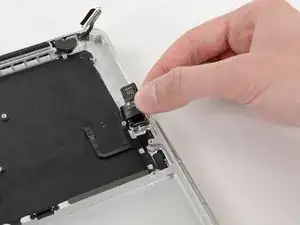

    • Lift and remove the headphone jack out of the upper case.

Conclusione

To reassemble your device, follow these instructions in reverse order.
