Prereq for removing the upper case.
Strumenti
-
-

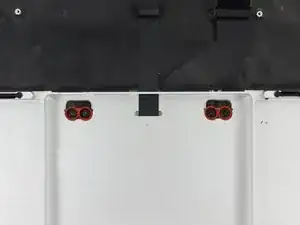

Remove the following screws securing the trackpad to the upper case:
-
Four 1.4 mm Phillips #000 screws
-
-
-

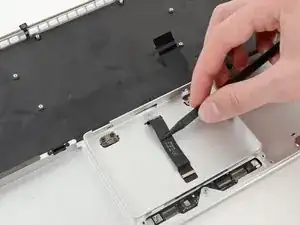

Wedge the spudger between the trackpad ribbon cable and the upper case.
-

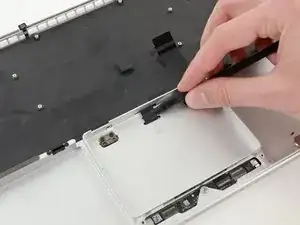

Run the spudger along the bottom to release the trackpad ribbon cable from the adhesive securing it to the upper case.
-
-
-

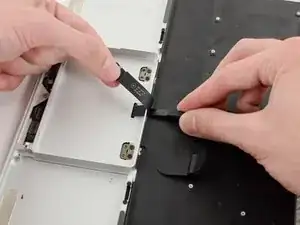

Insert the tip of a spudger in between the trackpad ribbon cable and the upper case.
-

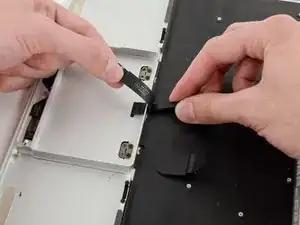

Carefully thread the trackpad ribbon cable out of the notch near the top of the SSD assembly cavity.
-
-
-

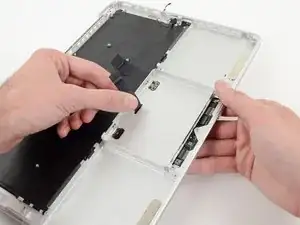

Once the trackpad is free of the upper case, guide the trackpad ribbon cable through the slot cut in the upper case.
-

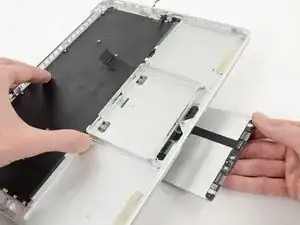

Remove the trackpad from the upper case.
-
Conclusione
To reassemble your device, follow these instructions in reverse order.
