MacBook Pro 13" Unibody Mid 2010 Hard Drive Cable Replacement

Scritto Da: Walter Galan
  • Commenti: 25
MacBook Pro 13" Unibody Mid 2010 Hard Drive Cable Replacement

Difficoltà

Easy

Passi

11

Tempo Necessario

30 minuti - 1 ora

Introduzione

Use this guide to replace your hard drive cable. A new hard drive cable also provides a new IR sensor.

  1. dOyroxuUBfNu1T4K

    • Remove the following 10 screws securing the lower case to the MacBook Pro 13" Unibody:

    • Seven 3 mm Phillips screws.

    • Three 13.5 mm Phillips screws.

    Compare the short screws carefully before reinstalling them. The shouldered screws go in the holes on the front edge.

    David Kilbridge -

    Before I started removing any screws I took a piece of paper and drew the bottom of the laptop and put a piece of double-sided tape in the spot where each screw goes. That way when I took out the screws, I could put them on the tape so I knew exactly which screw went in which spot. I did the same thing for dismantling the inside on another sheet of paper, then a third sheet for the screen after getting the front glass off.

    mastover -

    I use a similar technique: I print out the iFixit manual for the job, and Scotch-tape down the screws/brackets/cables I remove at each step next to the component descriptions. That way, when I'm reassembling, the bits are taped right next to the photo of where they came from.

    adlerpe -

    That's exactly what I do for all my repairs! It's the best way to keep track of all of the parts ' original location and to make sure that you don't miss any parts during reassembly.

    joyitsjennie -

    Great idea and one I use often

    Thomas Overstreet -

    Excellent idea! Thanks for sharing it here.

    Laura Sharkey -

    I used a 00 that fit but the screws were very tight so I used a tiny paintbrush with some wd40 on it and put it around the edges of the screws. Worked like a charm

    valentinedhdh -

    I use a magnetic mat and place the screws in order on that :)

    Cary B -

  2. bLtKOLyJdyAxkZaG

    • Slightly lift the lower case and push it toward the rear of the computer to free the mounting tabs.

    In the introduction you should link fixers to this excellent doc: https://www.ifixit.com/Misc/HD_Software_...

    It is really critical, super easy, and free(!) to clone your existing drive onto the new one you will install. I ran into one error, but SuperDuper! support replied immediately on how to fix it...Thanks ifixit and SuperDuper! (I ponied up the $28 for the software anyway, I was so impressed!)

    Mike -

    Long story short: I drank the AppleKoolAid back in 1984 and have always left the guts of my machines up to Apple - until recently when I needed to swap the SATAs from my original MacDaddy (2009 13" MBPro that I killed in 2018 - coffee + blackout = OOOOPS) into a pristine 2009 MBPro from a Goodwill in North Carolina through eBay. I need the files from iCal and MacMail that can't be opened in my newer machines.

    Well . . . I ain't never done nuttin' like that, before!

    Enter Luke Miani on YouTube. He raves about you guys! So, I watched everything I could, read your site, bought the right tools and at the ripe old age of 72, I sat down, this morning and did the work. Now my original MacDaddy lives in MacDaddy2.0.

    Am I allowed to cry?

    Seriously, I can't thank you enough for your bitchen site and killer tools. I wish I'd'a been turned on to this shizzle 30+ years ago.

    IFIXIT - IDIGIT!

    kath myers -

    HAHAHAHAHAHAHAHAHAHA.

    That was a brilliant read.

    Yes, I came across ifixit a few years ago. Totally helped me out on several occasions.

    Glad your Mac repair journey worked out.

    :)

    Cary B -

  3. B1SUXfcr5fruMavs

    • For precautionary purposes, we advise that you disconnect the battery connector from the logic board to avoid any electrical discharge.

    • Use the flat end of a spudger to lift the battery connector up out of its socket on the logic board.

    Citazione da gansodesoya:

    why is step 3 necessary?

    Just to disconnect any power source to avoid damages by short-circuits.

    MrKane -

    How do you get that battery connector back on? Do you just press it in back in place after you're done?

    Horace Chung -

    yes. I usually plug it in before I screw it down so I can lift the battery a bit and have enough slack to be able to go straight down on the connector, otherwise it comes in on a bit of an angle, which can't be good (though not necessarily bad).

    maccentric -

    This step almost finished me, and I did extensive damage to the battery plug. Fortunately, I later replaced the battery, and the replacement came with a new plug! :) Newbies need to know - 1. The battery plug is like a thin lip on a thicker lip, so you need to pry BETWEEN 2 thin lips to get it off, else you are trying to yank out the socket. 2. Mine was initially VERY tight, and trying to get it out broke the plastic on all sides of plug, even though I was as careful as possible. Luckily, this didn't hurt functionality and I later replaced the battery. AFTER disconnecting once, it was never so tight again,

    Jeff Diamond -

  4. OSkQdXsfod6RLcSX

    • Remove two Phillips screws securing the hard drive bracket to the upper case.

    • These screws are captive to the hard drive bracket.

  5. V2gfqoVcxnAQQUiE

    • Lift the the retaining bracket out of the upper case.

  6. eNLVBJMTMXREZdYB

    • Lift the hard drive by its pull tab and pull it out of the chassis, minding the cable attaching it to the computer.

  7. jRn55gJAUmDPZFOE

    • Remove the hard drive cable by pulling its connector straight away from the hard drive.

    I guess it's probably my fault that I broke the SATA cable during this step (unless the cable was somehow already weakened), but for anyone reading this, be extra careful. My connector was fitted really tightly, and when it finally came out it ripped the cable, which is pretty expensive in its own right (although you can get a cheaper deal on eBay).

    nitrous -

  8. mlI3OqOY6dZTUEIw

    • Remove the following four screws securing the hard drive and IR sensor cable to the upper case:

    • Two 1.5 mm Phillips screws.

    • Two 9.5 mm Phillips screws.

  9. df13UTKQgfGiTRjR
    df13UTKQgfGiTRjR
    6pCABJ2GSsAdOSNq

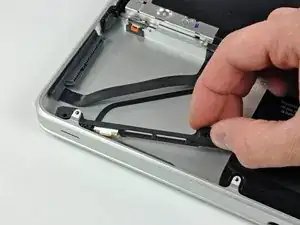

    • Slide the hard drive and IR sensor bracket away from the edge of the upper case.

    • Carefully peel the hard drive and IR sensor cable from the upper case.

  10. g5asXrDlmOuwXXuh

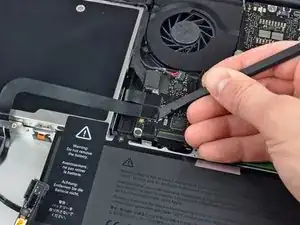

    • Use the flat end of a spudger to pry the hard drive cable connector up off the logic board.

  11. 5qJJIUMDsKJANfTO

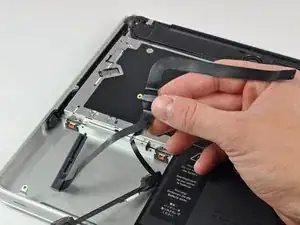

    • Lift the hard drive/IR sensor cable assembly out of the upper case.

    • If your replacement part does not come with the hard drive bracket and indicator light, you will need to pull those off of the part you are removing and install them on the new part.

    • Your replacement part may come with several adhesive foam bumpers. These are to ensure a snug fit of both bracket and hard drive. Apply only as needed.

    I had the same challenge with the ribbon cable clamp. There is a tiny orange ribbon, visible in the lower left corner of the photo for step 10, above, that needs to be connected to the new part using a tiny clamp, also visible right there in step 10. To open it, you flip up part of the clamp that is opposite the ribbon. That will release the ribbon, and enable you to slide the ribbon into the new clamp, which then you can adhere to the bracket. Hope that's helpful for future fixers.

    Bryony -

    Thank you, Bryony! Very helpful clarification on how to open the clamp. All set now.

    Lucas -

    To connect the orange ribbon for the IR sensor you have to have to lift the little handle on the back part 90 dregrees up of the black plastic terminal piece. So now its open.

    After you did this its totally easy to insert the orange ribbon flat cable. After that close the little handle again - thats all!

    Jpat70 -

Conclusione

To reassemble your device, follow these instructions in reverse order.
