MacBook Pro 15" Unibody 2.53 GHz Mid 2009 Subwoofer & Right Speaker Replacement

Scritto Da: Walter Galan
  • Commenti: 8
MacBook Pro 15" Unibody 2.53 GHz Mid 2009 Subwoofer & Right Speaker Replacement

Difficoltà

Moderate

Passi

20

Tempo Necessario

30 - 45 minuti

Introduzione

Is the right side of your MacBook Pro mute? Use this guide to replace the subwoofer & right speaker assembly.

  1. YkoEfqbWbrNPgNSB

    • Remove the following ten screws securing the lower case to the upper case:

    • Seven 3 mm Phillips screws.

    • Three 13.5 mm Phillips screws.

  2. KmDGlwcxPu6ph3sm

    • Using both hands, lift the lower case near the vent to pop it off two clips securing it to the upper case.

    • Remove the lower case and set it aside.

  3. LHeE6iVx3STyDO3D

    • Three Pentalobe screws secure the battery to the upper case. They can be removed with this special driver.

    • If you don't have a Pentalobe driver, a 1.5 mm flathead screwdriver can be used in a pinch. Be sure the head of your flathead screwdriver fits snugly across two of the five "points" of the screw head before trying to break the screw free, as a loose fit will easily strip the screw head.

    • If the head of your screwdriver fits too loosely, find a bigger bit and file it down until it fits snugly before proceeding.

    • You do not necessarily have to follow steps 3-7 to remove the battery in order to replace the hard drive. However, it is recommended to remove all power sources from electronics before working on them.

    It really depends on how thick the 1.5 mm flathead screwdriver is. I tried a low-cost tool and almost destroyed the screw. So be carefull

    Paul -

    Unfortunately, when I added a second hard drive via these instructions, all went well but Bluetooth is now MIA. Can anyone help?

    Peter Payne -

    I agree...

    I have bought a used MacBook Pro, when problems arise, opening Corps was trying to turn the screw, but with poor quality could not turn a screwdriver, only to ruin the screw. Try to buy ifixit Screwdriver set. Good luck to all and thank you ifixit team for such assistance as ifixit.com. Thank you.

    remjok -

  4. xGAhgZZyYYcDTHGa

    • Remove the two exposed five-point Pentalobe screws along the top edge of the battery.

    The screws holding my battery were all worn out since an earlier removal. So instead of ruining them even more I put some saran wrap on the tip of my pentalobe driver and gently unscrewed them.

    magnus -

    I have a problem with these screw. They a completly warn and I need some new ones to fix the new Battery.

    Does anyone know which thread it is and which length?

    alexanderleith -

  5. Cu1rp51DpHW16GLl

    • Use the tip of a spudger to bend back the finger of the "Warning: Do not remove the battery" sticker while you remove the five-point Pentalobe screw hidden underneath.

  6. QphNb6fJqTBD2cYF
    QphNb6fJqTBD2cYF
    cdkwbvUvHl3QeCJg

    • Lift the battery by its plastic pull tab and slide it away from the long edge of the upper case.

    • Do not try to completely remove the battery just yet.

  7. BQ1JtoRMPS3hs3VU

    • Tilt the battery back enough to access the battery cable connector.

    • Pull the battery cable connector away from its socket on the logic board and remove the battery from the upper case.

    • If you're installing a new battery, you should calibrate it as soon as possible.

  8. Zh2pOnMrAV5iCHcJ

    • Apple sticks a small strip of clear plastic with adhesive applied to one side to the logic board behind the camera cable connector to keep it in its socket. When moving it out of the way, be sure not to break any surface-mount components off the logic board.

    • Hold the end of the cable retainer down with one finger while you use the tip of a spudger to slightly lift the other end and rotate it away from the camera cable connector.

    I tried to move the plastic piece, but it seemed risky for someone with no experience like me. It was not hard at all to just peel off the camera cable without messing with the connector, and then, carefully take the optical drive out.

    joaquingoyret -

    Totally agree. Optical drive is easily removed by peeling off camera cable

    John Doyle -

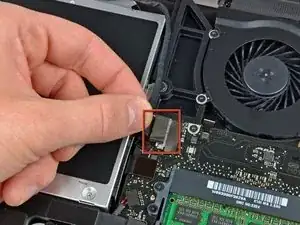

  9. TVvjKBOcMbINxlyB

    • Disconnect the camera cable by pulling the male end straight away from its socket.

    • Pull the connector parallel to the face of the logic board, not straight up.

  10. Kqd3ZeFOJnDD6Crc

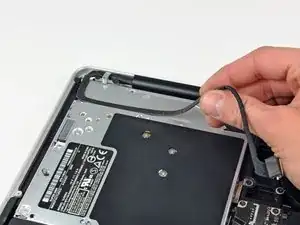

    • Peel the camera cable off the adhesive securing it to the optical drive.

  11. IjPEwiE5RtYYvu6j
    IjPEwiE5RtYYvu6j
    viDidjS6wPXYvPkm

    • This step is only required if you have an anti-glare display. If you have a glossy display, skip this step.

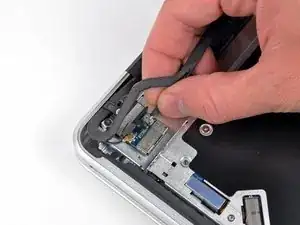

    • Disconnect the Bluetooth cable by pulling the male end straight away from its socket.

    • Pull the connector parallel to the face of the logic board, not straight up.

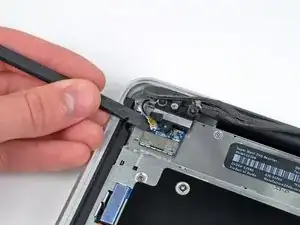

    • Use the flat end of a spudger to pry the Bluetooth antenna cable from its socket on the board.

  12. YMdXj5NiEBXYWBub
    YMdXj5NiEBXYWBub
    ZOP3GRxTDkMLKIPW

    • This step is only required if you have an anti-glare display.

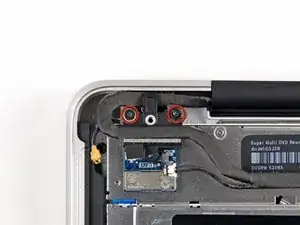

    • Remove the two 8 mm Phillips screws securing the Bluetooth/camera cable retainer to the upper case.

    • One of the screws may remain captive in the Bluetooth/camera cable ground loop. If replacing the display, be sure to transfer this screw to the new unit.

    • Lift the Bluetooth board/cable retainer assembly out of the upper case.

  13. U21dsKeHTKvIqVlp

    • Use a spudger to pry the optical drive connector straight up off the logic board.

  14. SJJW4cbZDsljflPq

    • Remove three 3.5 mm Phillips screws securing the optical drive to the upper case.

  15. 6hu2sKTENrPKhgqq
    6hu2sKTENrPKhgqq
    eIstg4xvNpaSxdWx

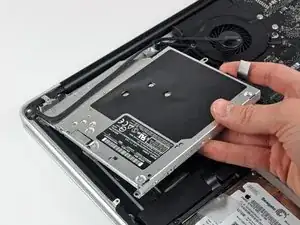

    • Lift the optical drive from its left edge and pull it out of the computer.

    • When reassembling, be careful that the SATA cable doesn't get stuck underneath the logic board.

  16. KVTEiPkQZkOWbCZP

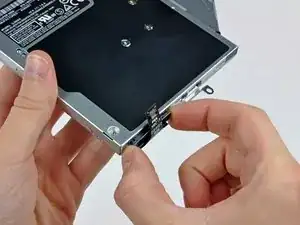

    • Débranchez le connecteur du câble du lecteur optique de celui-ci.

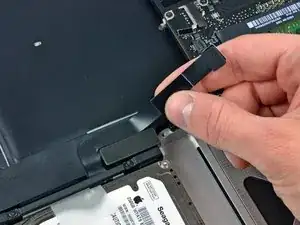

  17. WpaDEqP5riRW5xDI
    WpaDEqP5riRW5xDI
    rCHl1Lfy6YIelRXb

    • Use the flat end of a spudger to pry the hard drive/IR sensor cable connector up off the logic board.

    • Peel the hard drive cable up from the channel within the subwoofer and right speaker.

  18. cTBcKcHBRl3YwB2s

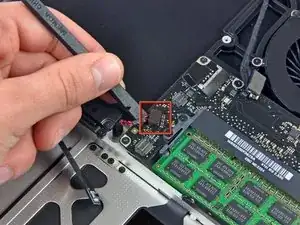

    • Using the flat end of a spudger, pry the subwoofer connector straight up off the logic board.

    i pried from the wrong side and broke the connector. :( is there any way to fix this? I lost 60 percent of my sound. AND THE SUB!!! D:

    Dustin Hoeppner -

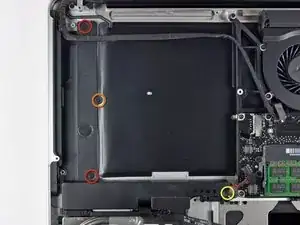

  19. CeGgupEV6GEsyNAy

    • Remove the following four screws securing the subwoofer and right speaker to the upper case:

    • Two 3.2 mm Phillips screws.

    • One 2.6 mm Phillips screw.

    • One 5 mm Phillips screw.

  20. BwBoNsJK2gKWdE4q

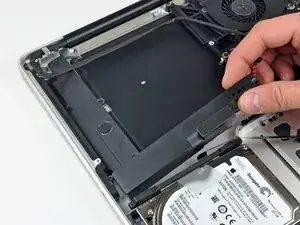

    • Lift the subwoofer and right speaker assembly out of the upper case.

Conclusione

To reassemble your device, follow these instructions in reverse order.
