Introduzione
This guide is an internal prerequisite.
Strumenti
-
-
Use the flat end of a spudger to carefully peel off the three antenna straps stuck to the lower edge of the LCD.
-
-
-
Remove the five Phillips screws securing the clutch cover to the bottom edge of the front display bezel.
-
-
-
Disconnect the display data cable from the LCD by pulling it toward the bottom edge of the display.
-
-
-
While pulling the clutch assembly away from the clutch hinge with one hand, insert an iPod opening tool between the clutch cover and the front display bezel to lift the clutch cover over the retaining pin on the front display bezel.
-
Pull the clutch assembly away from the front display bezel.
-
-
-
Repeat the process covered in the previous step to free the other side of the clutch assembly from the front display bezel.
-
-
-

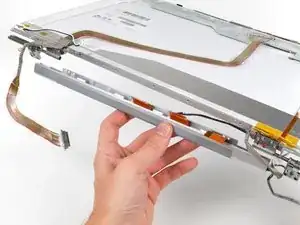

Remove the clutch assembly from the front display bezel, minding any cables that may get caught.
-
To reassemble your device, follow these instructions in reverse order.
Be careful pulling off the kapton tape. Because of the age of the computer and the continuous heating and cooling, the tape can become brittle and the adhesive will stick to the surface of the LCD and not the tape itself, making it unusable. If this happens, you can find small rolls of kapton tape on the internet or get it in the ifixit store.
