Macintosh PowerBook 1400 Series RAM Replacement

Scritto Da: Kian Dinyari
  • Commenti: 3
Macintosh PowerBook 1400 Series RAM Replacement

Difficoltà

Moderate

Passi

24

Tempo Necessario

15 - 30 minuti

Introduzione

This repair guide will give instructions on how to remove the Macintosh PowerBook 1400c RAM.

  1. XVAjiLMmxRXuHSmW

    • Turn the device upside down and then locate the battery latch near the front of the device.

  2. dLUXPTVOAU4pYtVU

    • Slide the latch to the left to release the battery.

  3. 3LuoltEuugDvNDSF

    • Continue holding the latch then gently pull the battery out of the device.

    • Place the battery in a safe location.

  4. hRA3HSjpbRUWlpWN

    • Locate the CD-ROM Drive latch.

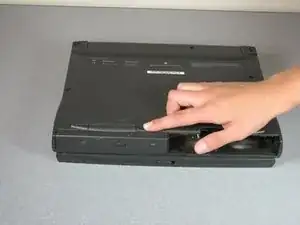

  5. BlGGHxEdruloOLIV

    • Slide the latch to the right to release the CD ROM drive.

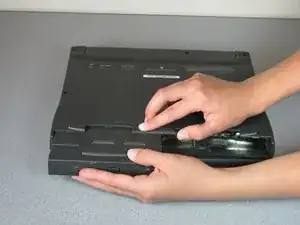

  6. 3OaZpuklxpUX4rJ1

    • Continue holding the latch then gently pull the CD-ROM Drive out of the device.

    • Place the CD ROM drive in a safe location.

  7. YFIrtSXImJAwNkmj

    • Locate the speaker cover.

  8. nNcsR2lJCMVrGvt3

    • Press firmly on each end of the speaker cover and slide it to the left.

    I found it was easy to get a spudger over the left edge and lift it up a bit, then push the bar to the left, It pops right off after that.

    Jimmy James -

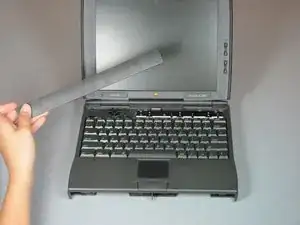

  9. x3QgobWR63reVXVT

    • Gently lift the speaker cover to remove it.

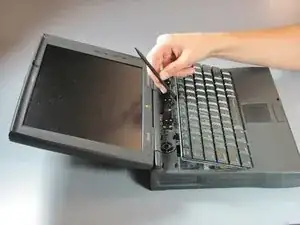

  10. uosT2HIInk23dG33

    • Lift the keyboard up from the back using a spudger(wedge side).

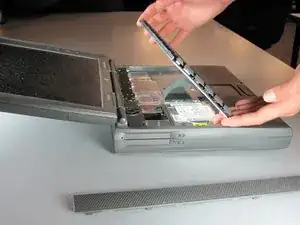

  11. IAgnbYMCFNIB24Po

    • Gently lift the keyboard until only the ribbon cable remains attached.

  12. 5oCdjmXGO2hKbjJd

    • Tilt the keyboard away from the screen.

  13. e6I4FsEKSJMAtjKa

    • Locate the six screws that secure the heatsink.

    This is not necessary to remove the HDD. Go directly to step 20.

    Kenneth DeVries -

    That isn't the HDD!

    Dix Dox -

  14. LHEYU4obieJPAYp3

    • Remove the six screws from the heatsink using the Philips #1 screwdriver.

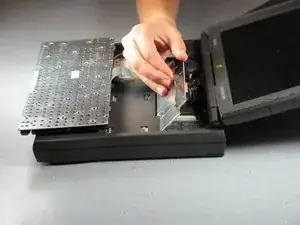

  15. yw4JrxuPW1SkTVtQ

    • Lift the heatsink from the side closest to the laptop screen.

  16. f6bZEM6RUY3fHtbG

    • Remove the heatsink.

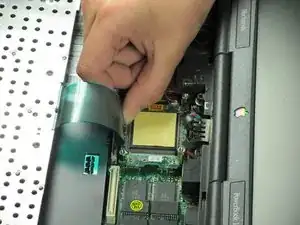

  17. GVUYJc4vowI4kT2j

    • Gently pull up on the beige ribbon lock until it moves a short distance on both sides to separate the ribbon cable from the connector.

  18. URASOaRtCqmEcdCU

    • Detach the ribbon cable.

  19. wBfC1SBksvdDshMV

    • Remove the keyboard.

  20. bReTDUiFoYUtwQBC

    • Identify RAM Memory stick

    • These are the upgradeable RAM Memory sticks, they must be removed first

  21. nlDGTykhTcwZgtGD

    • Gently grasp the ram on the far end as shown in the picture and then pull up and away from the right side of the computer

  22. hhF2mPe4EtZTwf1m

    • Remove the upgradeable RAM stick

    • If the upgradeable RAM stick is all you are repairing you can end the guide here, however to remove the factory installed RAM please continue

  23. wr62UcUpHuTua2BH

    • Gently grasp the factory installed RAM by grabbing each end as shown in the picture and pull the stick directly up

  24. Xm36aLLZLgJrnKOS

    • Remove the factory installed RAM memory module

Conclusione

To reassemble your device, follow these instructions in reverse order.
