Macintosh PowerBook 165c Daughterboard Replacement

Orient the computer so the battery is facing you.

Slide the gray plastic battery cover to the right.

Pull the battery toward yourself until it is fully detached.

Orient the computer right side up with the rear facing you.

Open the Input/Output (I/O) door.

Carefully bend the door into an arch until one of the pins releases from its slot.

Once one of the pins is free, remove the I/O door from the computer.

Orient the computer with the bottom facing up and rear facing you. You should be able to read the Macintosh label in this position.

Use a T8 torx screwdriver to remove the 6.8mm long screw above and to the right of the modem jack.

Twist counter clockwise to remove the screw.

Use a T10 torx screwdriver to remove the four, 18mm long screws from the lower case.

Place your hands on the lower case, just above the I/O panel, and slowly lift the lower case a few inches above the main body of the computer.

Release the large, gray interconnect ribbon cable just behind the I/O panel.

Place your thumb on the upper case, inside the empty battery slot, and your index finger near your thumb on the left side of the lower case.

Pinch your thumb and index finger towards each other to release the clip. Without releasing pressure on the pinch grip, use your index finger to push the lower case upwards.

Lift the lower case to remove it.

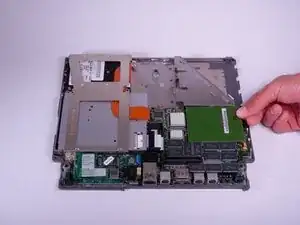

Locate and lift ram card directly up until connector releases.

Move the card back and forth gently if the connector does not release immediately.

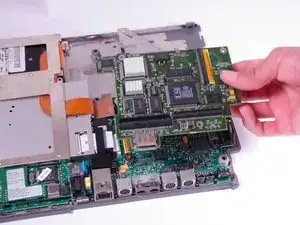

Locate and lift the PSRAM expansion card vertically until connector releases.

If the PSRAM expansion card is difficult to remove, gently jostle it back and forth as you lift up.

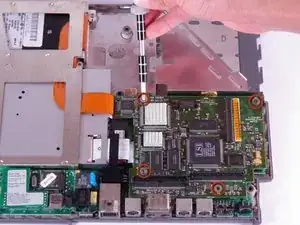

Use T8 torx screwdriver to remove four, 7.7mm long screws from the perimeter of the daughterboard.

Life the daughterboard directly up to remove it from the connector.

If the daughterboard does not easily release from the connector, gently jostle it back and forth as you lift up.
