Magellan RoadMate 1200 Back Cover Replacement

Scritto Da: Ross Light
  • Commenti: 2
Magellan RoadMate 1200 Back Cover Replacement

Difficoltà

Easy

Passi

4

Tempo Necessario

5 minuti

Introduzione

After you remove the back cover, you can get to any part of your RoadMate.

  1. VgTkNJfL6VlmwuA1
    VgTkNJfL6VlmwuA1
    psaePSmdZBp2Sa1e

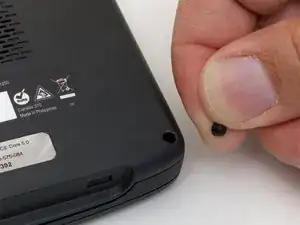

    • Remove the four rubber caps from the back by using the Phillips #00 screwdriver.

  2. OeSvGyZAceYbcNEW

    • Remove the four screws holding the cover in place by using the Phillips #00 screwdriver.

  3. JeXyCOW2EvmVYGtc
    JeXyCOW2EvmVYGtc
    KlbuxowURVIt1XKj

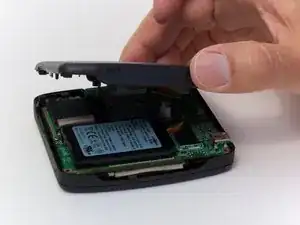

    • Remove the back cover from the device by separating the back cover along its seam.

    • Slowly lift the cover—the speaker is screwed onto the back cover and is connected to the circuit board.

  4. a4AiVyY6pPepaCxd
    a4AiVyY6pPepaCxd
    JqJwhBpkT3lnNS6F

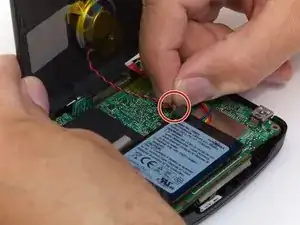

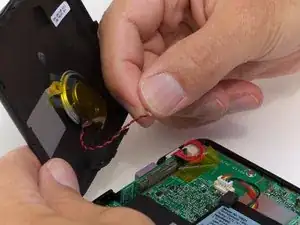

    • Pull the speaker cord, horizontally, by its base, away from the motherboard.

    • When reassembling, make sure that you plug the terminal in the same way. The black wire should be on the side farthest from the battery.

    In my 1200, the speaker is glued to the back and soldered into the board so there is no plug to undo. Just carefully find a position so that board doesn't pull on the speaker wire while it is open.

    Jomar -

    where can we get the speakers from? please

    bbunni1404 -

Conclusione

To reassemble your device, follow these instructions in reverse order.
