Magic Bullet NutriBullet Pro Activator Replacement

Scritto Da: Malcolm Smith Fraser
  • Commenti: 7
Magic Bullet NutriBullet Pro Activator Replacement

Difficoltà

Moderate

Passi

7

Tempo Necessario

10 minuti

Introduzione

If your Magic Bullet NutriBullet Pro won't activate, and you have determined that the activators are the culprit, follow this guide to replace them. This guide will work to replace all three activators.

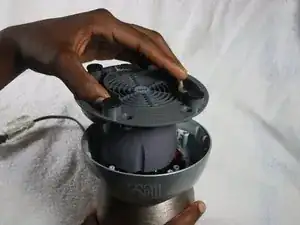

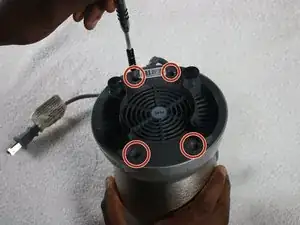

  1. MYl2gqIdalKZPeBx
    MYl2gqIdalKZPeBx
    eUMHscoMCYCaPWdN
    xp3rfTK4JtBcfe1c

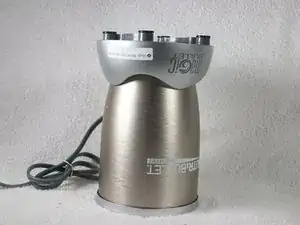

    • To start the disassembly of the Magic Bullet NutriBullet Pro you will begin from the bottom.

    • Flip the device over to the bottom.

    • Unscrew the four 1 cm screws using #2 Phillips Head Screwdriver.

    • Remove the loose bottom portion of the device by pulling up from the bottom.

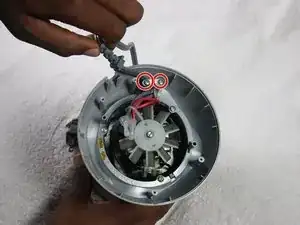

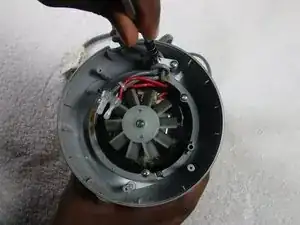

  2. SNUZLqcWAnyewXpj
    SNUZLqcWAnyewXpj
    RLqsk6SCIHJOSXGx

    • Unscrew the two 1 cm screws holding down the power cord using the #2 Phillips Head Screwdriver.

  3. 6eZOlYqOAYkFqGeO
    6eZOlYqOAYkFqGeO
    fPNBYwTi5pxQaxeB
    5DYOYbe6beBMyCl3

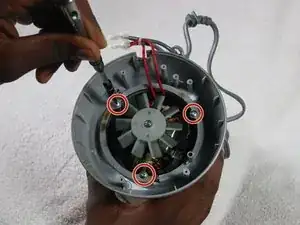

    • Unscrew the three 1 cm screws on the device circled on the screws pictures using the #1 Philips Head Screwdriver.

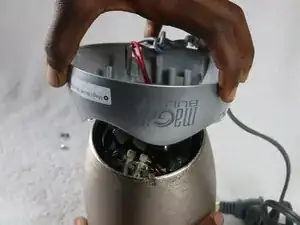

    • Lift off the grey plastic piece off.

    • Slide off the silver metal piece.

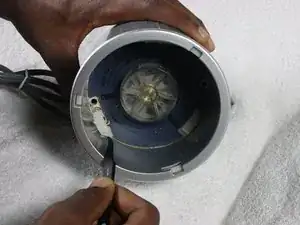

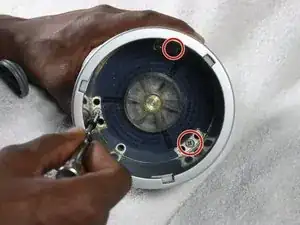

  4. CcYNwESSd3FDDbMK
    CcYNwESSd3FDDbMK
    KDrG1DH3IEpKZ6CT

    • Flip the device over.

    • Remove the three rubber seals covering the screws by pulling the components upward with the tweezer.

    • Unscrew the three 16 mm screws using the #2 Phillips Head Screwdriver.

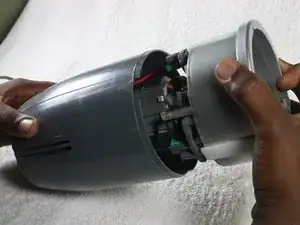

  5. bd3vpjOf6H226o2O
    bd3vpjOf6H226o2O
    OijybfxRVa4vCVdg

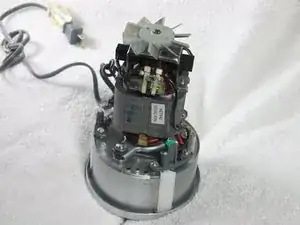

    • Pull off the casing from the device.

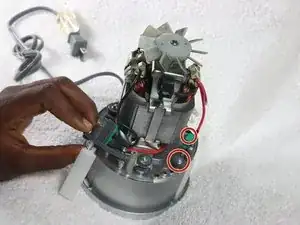

  6. KqKs5fOP3FTm2DrO
    KqKs5fOP3FTm2DrO
    B6bBRy4ZhZqfJIb1

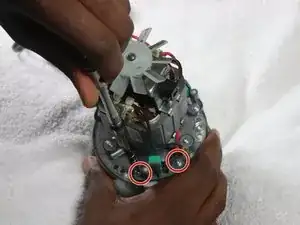

    • Remove the two 8 mm screws using the #2 Phillips Head Screwdriver while holding the activator in place.

    • There are three separate activators with two screws each.

  7. 64wW24BqRHF1wXcc

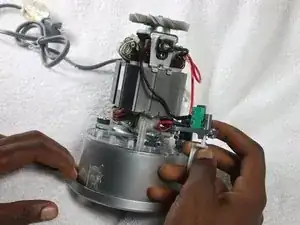

    • Be careful of the spring flying out.

    • Lift activator out of the Magic Bullet housing while holding the spring with tweezers.

Conclusione

To reassemble your device, follow these instructions in reverse order.
