Makita DLM431 Lawn Mower Rear Axle Replacement

Scritto Da: hainzy
  • Commenti: 1
Makita DLM431 Lawn Mower Rear Axle Replacement

Difficoltà

Easy

Passi

6

Tempo Necessario

20 minuti

Introduzione

These instructions will show you how to replace the rear axle of your Makita DLM431 lawn mower.

  1. sGC4UYm2wNo2KnUa
    sGC4UYm2wNo2KnUa
    cm3RFdcYFeDsZEGb
    GPTUD42iMtJOFkdl

    • Charged batteries may be a risk of electrocution so it is best to discharge them or even better to remove them for the duration of the repair.

    • Remove lock key and the grass-catching basket.

    • Put the lawnmower on its head and store it safely.

  2. pg2KGC3WbLM5MsQu
    pg2KGC3WbLM5MsQu
    mwJEvrnQfQD44Yug
    SrR4ZiFFsDcOnLnp

    • Grasp the wheel cover caps in the middle and pull them off.

  3. aXxTMwFOXWJInIXp
    aXxTMwFOXWJInIXp
    jAPjsbbnRu11BHPS
    cMSSdInJSwkcwrqS

    • Loosen the nut of the wheels with a 13mm spanner.

    • Pull the wheel off the axle

  4. QJQdAYPWbYQSZRBn
    QJQdAYPWbYQSZRBn
    wIM4MptUMfdqQ3WC

    • Loosen the nut of the connection between rear axle and axle adjustment with the 13mm nut.

    • Pull off the axle adjustment linkage.

  5. GQwLFAn6cnewUHaV
    GQwLFAn6cnewUHaV
    L35EWnIH3nPBG1qP
    GvFTwXMMILrcFRwM

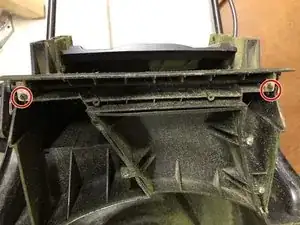

    • Remove screws with a Phillips screwdriver.

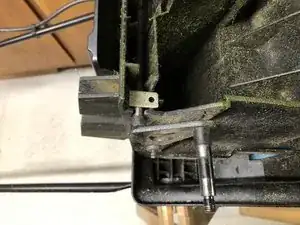

    • Push the axle holder backwards through the fairing to expose the axle.

  6. LQwEmQoUByeZ6GWt

    • Remove the old axle upwards.

    • Attach new axle.

    Excellent. I changed the axle quickly and the mower worked perfectly. The instructions were very easy to understand.

    William Evans -

Conclusione

Congrats! Now follow the steps in reverse order to reassemble your unit.
