Makita GA4030K Carbon Brush Replacement

Scritto Da: Nyssa Backes
  • Commenti: 0
Makita GA4030K Carbon Brush Replacement

Difficoltà

Moderate

Passi

4

Tempo Necessario

20 - 30 minuti

Introduzione

This guide will show you how to quickly and easily replace the carbon brushes in a Makita GA4030k angle grinder.

  1. ITFLolsgjunuX5VD
    ITFLolsgjunuX5VD
    wJmQSmULKY3UDUN4

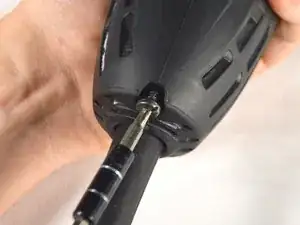

    • Unscrew the 20 mm tapping screw using a Philips #02 screwdriver.

  2. FTBa4amAXWI2Hp4w

    • Slide the back cover down the power cable.

  3. NfVZXxGXZXNgwPpO
    NfVZXxGXZXNgwPpO
    SttuN3tm1enoiBDA

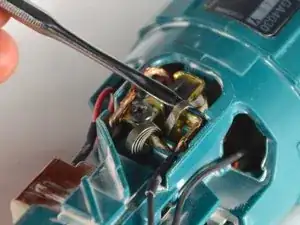

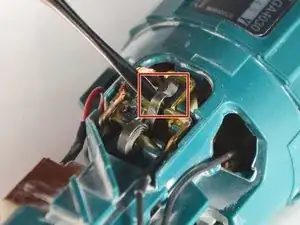

    • Use a spudger to move the springs (holding the brushes) to the side.

    • There are two brushes, one on each side.

  4. XQDtBqEFPMFRP2RN
    XQDtBqEFPMFRP2RN
    wS2bhRFOeKVU3j5U

    • Use needle nose pliers to gently pull out the carbon brushes by their crimped connectors.

Conclusione

To reassemble your device, follow these instructions in reverse order.
