Introduzione

This guide will help you open the case of your Jura Impressa F50 to get to the inner parts.

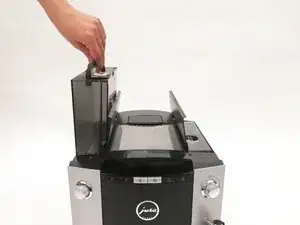

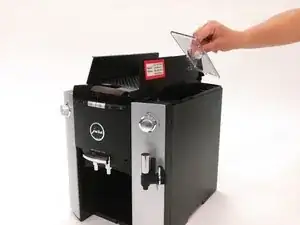

  1. qB1Rs3pcEYxtoIJZ
    qB1Rs3pcEYxtoIJZ
    BcMZQOLxnbKcaiAr
    TKfchGGoWbXEUPys

    • Clean the coffee machine before starting as well as possible and remove any remaining coffee bean debris, etc.

    • Pull the power plug before working on the coffee machine!

    • Never submerge the coffee machine completely under water.

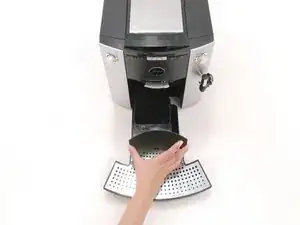

    • Remove the drip pan, tray and container for used coffee,...

    • ... the water tank, ...

    • and the aroma protection cover.

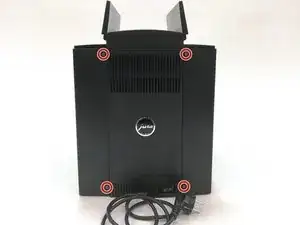

  2. iNxtIxwFOSKqtPia
    iNxtIxwFOSKqtPia
    YVSYVpeFIksDtTGX

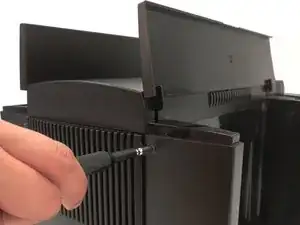

    • Using an oval head bit remove all four oval head screws from the rear panel.

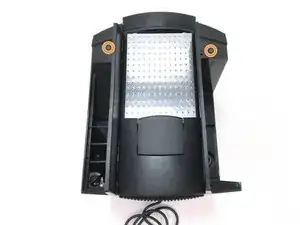

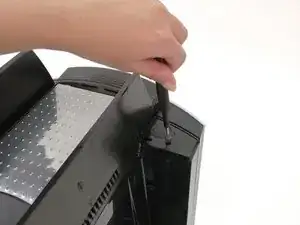

  3. Q5E6r5bv1FVoZWSm
    Q5E6r5bv1FVoZWSm
    cLmTcJhdBy3UmDLN

    • Remove the two T15 Torx screws from the coffee machine housing cover.

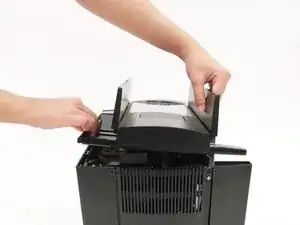

  4. Qd2bRD6VpopcDvU1
    Qd2bRD6VpopcDvU1
    j5yOAg5P1fsxpufo

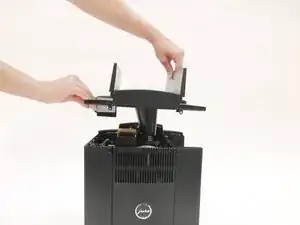

    • Remove the top cover of the coffee machine.

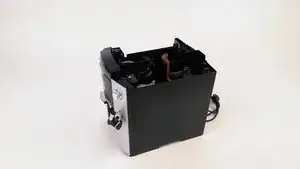

  5. Remove the panel from the right side.

    • Remove the panel from the right side.

    • Slightly lift the side panel at the back and then pull it out backwards with a little effort. Especially when disassembling it for the first time, the force required for this can be quite high.

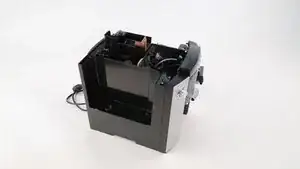

  6. Remove the left side panel.

    • Remove the left side panel.

    • A light tap on the back of the recess for the water tank can help to loosen the side panel.

Conclusione

Do you need help extracting the grinder of your Jura Impressa F50 to service it or replace it? Then check out the guide "Extract and Replace Grinder".
