Mavic 2 Camera/Gimbal Unit Replacement

Scritto Da: ColynOB
  • Commenti: 0
Mavic 2 Camera/Gimbal Unit Replacement

Difficoltà

Moderate

Passi

8

Tempo Necessario

1 ora

Introduzione

This guide describes how to replace the camera and or gimbal for the Mavic 2 drone.

  1. cZEPeEUVXxdjF4jU

    • Remove the two 2x5 mm screws from the plastic piece near the camera on bottom side using the Allen key.

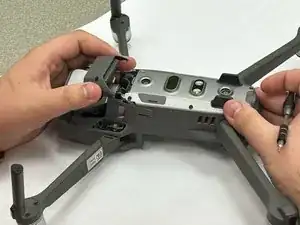

  2. X3oniZtxDkHbaelb

    • Remove plastic part from previous step.

  3. 5M5gaCAuMB4PYMlS

    • Remove ribbon cable connecting to camera by pulling at camera connection point.

  4. hIhU6XwKPejbL4vi

    • Unscrew 1.5 x 4.5 mm gimbal mount screw using Allen key.

  5. Cp5fHKghJcstNBiX

    • Use Allen key to remove screws holding nose plate, in the front left and right corners in front of the camera.

  6. QURloEUF1Xxm2LKt

    • Pull camera and gimbal from drone.

  7. Urr6hiJLtwXYmTcB

    • Remove four rubber parts from camera mount.

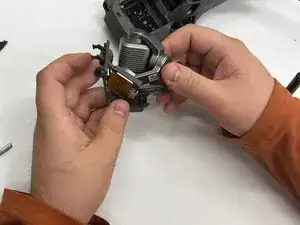

  8. QtpV2OSqpQYVikZP

    • Remove camera from frame by pulling apart.

Conclusione

To reassemble your device, follow these instructions in reverse order.
