Mi-T-M Heater MH-0190-0M10 Capacitor Replacement

Scritto Da: Sam Omiotek
  • Commenti: 0
Mi-T-M Heater MH-0190-0M10 Capacitor Replacement

Difficoltà

Moderate

Passi

6

Tempo Necessario

15 - 30 minuti

Introduzione

Follow this guide to replace the capacitor on a Mi-T-M heater model MH-0190-0M10.

  1. YRbIqSAM36IanG1s
    YRbIqSAM36IanG1s
    YiwWQ4jHxTGCAfbx

    • Power off the machine at least one hour prior to starting repairs. Ensure the machine is completely cool to the touch.

    • Flip the power switch into the OFF position.

    • Unplug any extension cords from the included power cord.

  2. BCnDXObnU4aLlUnw
    BCnDXObnU4aLlUnw
    FLPeVeegkam51uFt

    • Use a 5/16 inch socket or Phillips screwdriver to remove the eight screws securing the upper shell, four on each side.

  3. g3goHXdvbgJkfYnr
    g3goHXdvbgJkfYnr
    kk5TiRy4kNpsgEAK

    • Lift the upper shell straight up off of the machine to remove it.

  4. nUr1LlCHHQnT2Rib
    nUr1LlCHHQnT2Rib
    DCcQFJQVZSpfjKCh
    mQRyx1LHuauM4tFf

    • Grip the black and white wires by their connectors and pull firmly to remove them from the capacitor.

    • During reassembly, install the white and black wires on the same terminals as they were installed on the original capacitor.

  5. 6bnvtJ2CcEMUO4Da

    • Use a Phillips screwdriver to remove the screw securing the capacitor band clamp.

  6. u6aQ5tRJcEp6WDIb
    u6aQ5tRJcEp6WDIb
    1WhqLZE2bblyhNKd
    LIgFZeOwFbJSkLA1

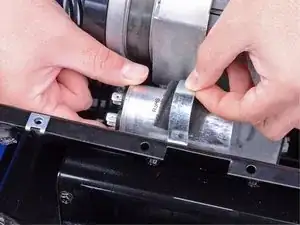

    • Remove the capacitor.

    • During reassembly, align the foam padding between the capacitor and the band clamp.

Conclusione

To reassemble your device, follow these instructions in reverse order.
