Microsoft Surface Headphones Speaker Replacement

Scritto Da: Ethan Haight
  • Commenti: 5
Microsoft Surface Headphones Speaker Replacement

Difficoltà

Moderate

Passi

5

Tempo Necessario

15 - 30 minuti

Introduzione

The Microsoft Surface Headphones speaker allows the user to receive audio from the device and hear what one is playing through their phone/computer.

Failing audio quality is the most common indicator of faulty speakers, such as the audio sounding distorted, or cutting in and out. If only one side of the headphones produces sound, it is a clear indicator that specifically the speaker is what is messed up; if both are silent, it is more likely to be another component like the battery.

  1. tGvJACWBAOVUdf1Q

    • Firmly grasp the ear cushions, and rotate them counterclockwise about 45 degrees, or until you hear a "click."

    • Be careful not to use excessive force during rotation.

  2. XrRH1jCCEcSQQnXX

    • Lift the ear cushions off the speaker housings.

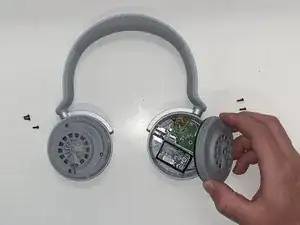

  3. WVUHjOwKysWR3HNL
    WVUHjOwKysWR3HNL
    v2St1vCRpP6DQPwr

    • Remove the six 2.6mm screws with a Phillips #00 screwdriver, and gently lift the speaker housings away.

    • If only one of the speakers is malfunctioning, only remove the screws on the affected side, and leave the functional speaker intact.

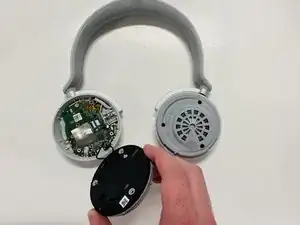

  4. efMFrwC1chf5VfWr
    efMFrwC1chf5VfWr
    AHdbJYfMWS2WMrcv

    • Gently pry the speaker housing away from the chassis with a spudger.

    Nescito el speaker R pliss

    Wildeman Osorio -

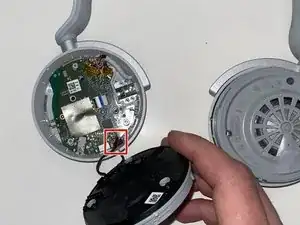

  5. xPaNYJo1kjCSk4nS

    • Desolder the speaker's motherboard connections.

    • Desoldering and soldering are delicate procedures, and there is a potential for device damage.

Conclusione

To reassemble your device, follow these instructions in reverse order.
