Milton Bradley Simon Light Bulb Replacement

Scritto Da: Simon Redondo
  • Commenti: 1
Milton Bradley Simon Light Bulb Replacement

Difficoltà

Very easy

Passi

9

Tempo Necessario

5 - 8 minuti

Introduzione

This guide will show you how to change the individual light bulbs from the Simon game. The repair is fairly simple and only requires the use of a Phillips head screwdriver.

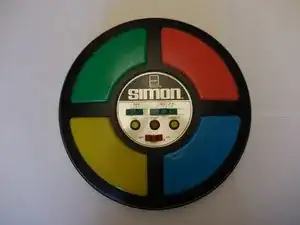

  1. nS3aBNyybMSRcXyF
    nS3aBNyybMSRcXyF
    XYyJNUIg2U3CVUsA

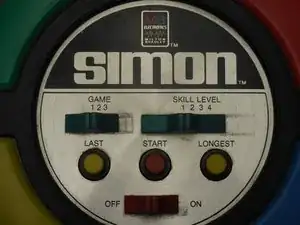

    • Make sure the game is powered off by switching the On/Off switch to the left.

  2. YEdwZEUtJ2NKqjcZ

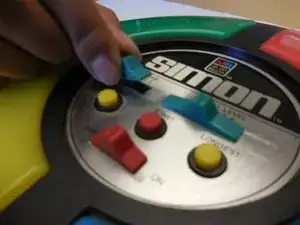

    • Take off the green and red switches on top of the game by pulling them off.

  3. AWHlkQBLtJT4RNtw

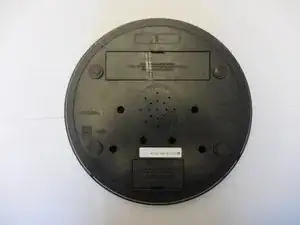

    • Flip the game over.

  4. nrNWkcxUWIcItuIk

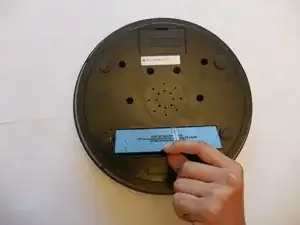

    • Slide the battery cover off of the back.

  5. WlyoImDHEcIMFyl3

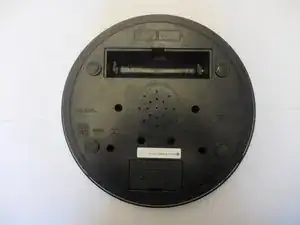

    • Take out the batteries.

  6. uABUg4m1ZUONQQOh

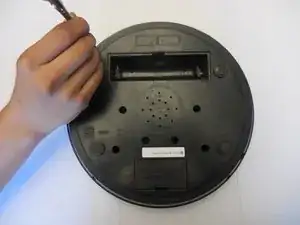

    • Use the Phillips Head screwdriver to unscrew the screws located at the four corners of the game.

  7. InA3gcSolXTDJLvm

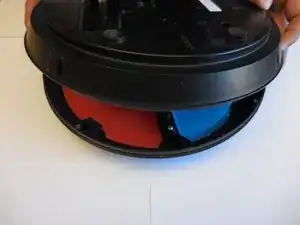

    • Pull off the back plastic case of the game.

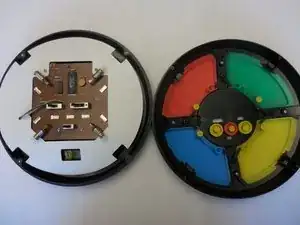

  8. FlgfJvxSHFNOHsof

    • Carefully place the top half of the game aside.

    • The top half is the half with the colored panels. Carefully place this half aside so the buttons do not fall out of place.

  9. ZHUYDUVlJTWBOK5M

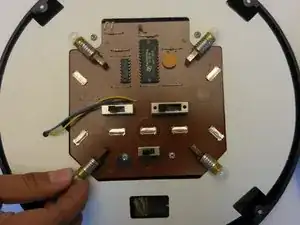

    • Unscrew the 4 light bulbs from the bottom half of the game.

    What kind of lightbulbs does it take?

    davidtkacik -

Conclusione

Follow these steps in reverse to reassemble the device.
