Mitsubishi Diamondpoint NXM76LCD Display Replacement

Scritto Da: Padraic Hoselton
  • Commenti: 0
Mitsubishi Diamondpoint NXM76LCD Display Replacement

Difficoltà

Moderate

Passi

12

Tempo Necessario

15 - 45 minuti

Introduzione

  1. lWYbCNkb3wlNSCRR
    lWYbCNkb3wlNSCRR
    LeX5jnJbOqNTDHAs
    QmRXQNJaOyb5Crh4

    • Lift the black cover off.

    • Remove all 4 Phillips #2 screws.

  2. wBK5oGAIeopFkHEZ

    • Remove the two 24mm Phillips #2 screws.

    • Remove the three 8mm Phillips #2 screws.

  3. ajyn3JXvGtOpyBmT
    ajyn3JXvGtOpyBmT
    dkglPOjbfutlIX3U
    d1eshrFqdoYSDmEK

    • Lift the back and pry the back off.

    • The panel is held in with clips on the side. It needs a lot of force the take it off.

  4. BTTyfU2OoRGyRVae
    BTTyfU2OoRGyRVae
    wLXiT2UL2rqNfQUE

    • Remove the four 5mm nut screws.

  5. MlSoYyd5rU4Jiies
    MlSoYyd5rU4Jiies
    T4gNjvkQyKIVwom5

    • Remove the seven Phillips #1 screws.

  6. HbvnaoJRqFH1xN12
    HbvnaoJRqFH1xN12
    okGbyeyRQF2KauXB

    • Remove the three Phillips #2 screws.

    • Remove the two data/power cables.

    • Remove the two speaker cables.

  7. y2WiFMXXl313fkS2
    y2WiFMXXl313fkS2
    OQZ141y6XQtxPYeA
    Si5XrZxyRHwkv5WS

    • Pull the two tabs.

    • Pull the connector off.

  8. cMOyQIyZ2rJ2RvUX
    cMOyQIyZ2rJ2RvUX
    5asiUPOxxiA5Yd2v

    • Remove the switch cable off.

    • Remove the two Phillips #2 screws.

  9. h64dXQ4kTXbVPuYl
    h64dXQ4kTXbVPuYl
    AqExTE3Xq1SPpGoP

    • Remove the four display power cables.

    • These cables are interchangeable.

  10. PmdbEJ5uLumgUFnY
    PmdbEJ5uLumgUFnY
    IyGVJfiPgEAXHXA2
    sAj6VTJKmb5JfXNe

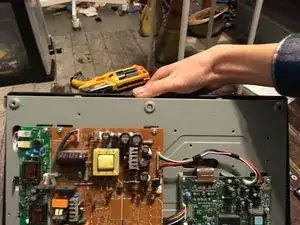

    • Lift the display out.

  11. wMgfWlRYAj1QKTKX
    wMgfWlRYAj1QKTKX
    PjKPItyGT3NdpvaU

    • Remove the four Phillips #2 screws.

    • These screws release the display from its enclosure. Hold the screen when removing these screws.

  12. IQEZX5HLVkpGnnwL
    IQEZX5HLVkpGnnwL
    K2wrGyAOlxU6UiVv

    • Remember to plug in all the cables on the display.

Conclusione

To reassemble your device, follow these instructions in reverse order.
