Motorola Droid MAXX 2 Earpiece Speaker Replacement

Scritto Da: Burke Seggerman
  • Commenti: 7
Motorola Droid MAXX 2 Earpiece Speaker Replacement

Difficoltà

Easy

Passi

8

Tempo Necessario

10 minuti

Introduzione

This guide will show you how to replace the earpiece speaker on a Motorola Droid MAXX 2 smartphone.

  1. cWZbypK6XXxttFjv

    • Insert a small pointed object into the hole on the sim card tray to eject the tray from the phone.

  2. HrRvDk3dO2oEYKBS

    • Pull the sim card tray up out of the phone

  3. fb2JXVgvKIVLEtdv
    fb2JXVgvKIVLEtdv
    Am3q12MVpMiDfEeE

    • Wedge your thumb into the indent located on the bottom left corner of the back cover and pull up to remove the back cover.

  4. RZmYbt4Sgoo55gBw

    • Remove the seventeen 3.2mm Torx T4 screws from the mid-frame.

    • These may be T3 screws. If you are having trouble unscrewing these, stop and try a T3 bit.

    These are actually T3 screws

    Kody Jordan -

    Wish I had noticed this BEFORE stripping all my screw heads… ugh!

    Alissa Carter -

    These are definitely T3 screws.

    Trey Crossan -

  5. Sg6vCOm3vPNOjOWP

    • Pull the mid-frame off of the phone.

    • Keep track of the on/off and volume buttons when you take the phone apart because they are likely to fall out when the halves are separated.

  6. Ky1HvRJKdDpnb6WL
    Ky1HvRJKdDpnb6WL
    FBeAreNRaD45gSeE
    GMEt4Bi1QJPgqevp

    • Remove the static tape covering the two connectors.

    • Use a spudger to disconnect the battery cables from the motherboard.

    • If battery has adhesive, use heat gun for one to two minutes to loosen it. Be careful of the points outlined in red when prying it up. Use guitar picks or a spudger to gently lift the battery and separate the adhesive.

    Just out of curiosity, does anyone know the purpose for the two very strong magnets?

    Rongwey -

  7. pL5XsRQNu3JiOb4s

    • Remove the disconnected battery from the phone.

    Where can I get a replacement battery for this model?

    Joel . Harness -

    The NFC pad has to be transferred to the new battery or it won’t charge correctly if at all. The black appears to be graphite. No matter how carefully I picked the charging coil off, the black still came off in places. Most of it was still intact so the battery charged to 100% (Yay!) and although the battery discharged at a normal rate, Asurion Battery Health app shows it working at only 637% which, oddly enough, is about the amount of graphite that was scraped off during the removal process.

    Rongwey -

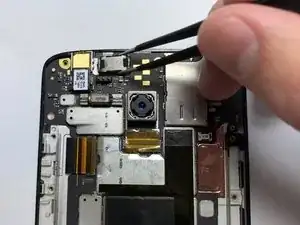

  8. FviDnkdyDXWa1P5u

    • Grab the speaker with the tweezers and gently pull up on the speaker.

    • The speaker is held in place around the edges with adhesive, so there will be some resistance when you try to remove the speaker from the phone.

Conclusione

To reassemble your device, follow these instructions in reverse order.
