Motorola Moto G4 Play Screen Replacement

Scritto Da: Yordan Gil
  • Commenti: 8
Motorola Moto G4 Play Screen Replacement

Difficoltà

Difficult

Passi

26

Tempo Necessario

30 minuti

Introduzione

Use this guide to replace a broken or malfunctioning screen. When removing the screen, make sure to wear safety glasses.

Before you begin, download the Rescue and Smart Assistant app to backup your device and diagnose whether your problem is software or hardware related.

Note: Microwave only one iOpener at a time for no more than 30 seconds, and make sure to not microwave it more than once within two minutes.

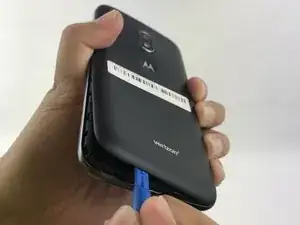

  1. mFtliL5QowbliHqm
    mFtliL5QowbliHqm
    ULqbilCwDPycSJQB
    DiKZASyATvcGbLWc

    • Open case with a plastic opening tool that has the same size as the divot located at the bottom left of the phone. If you don’t have an opening tool, use your finger nails.

  2. ZIvNAqJJqcLIa5cs
    ZIvNAqJJqcLIa5cs
    6prVeCtBCaQXGTMK
    UyBCEAuduBEJDdFK

    • Lift the case by the nearest corner to the divot and remove it from the phone.

  3. a4d4I6PcIguIagkF
    a4d4I6PcIguIagkF
    ZFKKNKEmrbLxRxnC
    5uZtZCL62KTEOjRB

    • Place the plastic opening tool into the notch located at the bottom of the battery compartment, and lift upwards. If you don’t have an opening tool, use your finger nails.

    • Remove battery from your phone.

  4. WWExWAyyFKpVXqhW
    WWExWAyyFKpVXqhW
    IUhtRQlVh21AEHUK
    qrNkksrOqsu51lMi

    • Remove any SIM card and/or memory card present using your hand.

  5. VX1sBUVynMr1rUX4
    VX1sBUVynMr1rUX4
    T2Wsgba5HHrCKLWq

    • Remove the small silicon cover at the bottom right of the camera using tweezers.

    I eventually gave up trying to peel it back and just brute-forced a small hole large enough to get to the screw. Slightly less waterproof now :)

    Slippery Jim -

  6. LGPSqwZmGmCcdokK

    • Remove the sixteen (16) 3mm Phillips PH000 screws securing the midframe.

    • Some phones have two shorter screws, one on each side of the battery (double marked with orange circles at left). If your device has these shorter screws, make sure they go back in their original holes.

  7. XRUn3BkjqwXA4vxJ
    XRUn3BkjqwXA4vxJ
    Ky3ByLLOPOdOT62h
    nCU1MhHiDogaasaK

    • Remove the back panel assembly with your hands.

  8. 3KVQJOCLsjuOLSma
    3KVQJOCLsjuOLSma
    EiXa5XLbJyPfvLEr
    DtZ6SdIhWcJUbQki

    • Use the flat end of a spudger to disconnect the rear-facing camera connector from its socket on the mother board.

  9. vxjGXvrnDapFlfZT

    • After detaching the connector, carefully remove the camera using tweezers. If you don't have tweezers, use your hands.

  10. DaP3xo6IV5IiAkJt
    DaP3xo6IV5IiAkJt
    e2vJSj2eI2xBCwiF

    • Use tweezers to pop up the antenna wire.

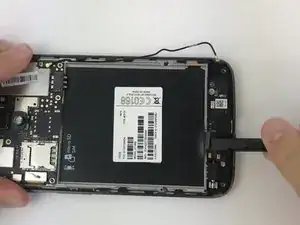

  11. 36FWAakj2QqhJxWI
    36FWAakj2QqhJxWI
    sLsny5uVVsKyMxhW

    • Use the flat end of a spudger to pry up on the connector at the bottom of the battery space.

  12. KYykH6I5ZeXyP1Wn

    • Remove the two (2) 3mm Phillips PH000 screws securing the charging port.

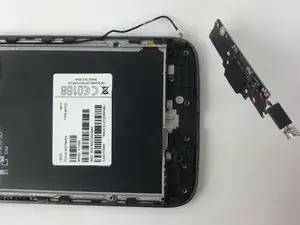

  13. FxvS4OHcnqBlIUeU
    FxvS4OHcnqBlIUeU
    J1nbb4Dx6YjOeNUv
    EUTSGf5hpb5I4GPY

    • Insert the tweezers under the vibrator and gently lift up the whole part.

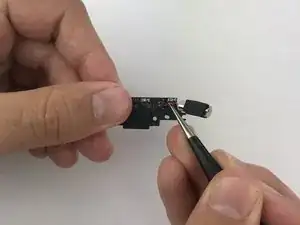

  14. HQqF2fqCa6fU3HQT
    HQqF2fqCa6fU3HQT
    PqVPYCDvaR2wISdc
    ivA6SnMcpEBY2jKm

    • Pop up on the vibrator's connector to separate it from the charging port.

    Putting this tiny connector back in will be the hardest part of the process. I wish I had a magnifier handy when I did this because my eyes aren’t what they used to be. Very tiny part!

    Slippery Jim -

    For the vibrator connector, it's very important for you to pop UP (i.e., perpendicular out of the motherboard). If you try pulling the connector to the right, you risk pulling the 2 wires out of the connecter.

    Allen T -

  15. SX5X4VB6A6eAj4II
    SX5X4VB6A6eAj4II
    mFMZQkoSSZGB1s6t
    mkhOUIT3U1ugURWY

    • Using an opening tool, pry up one of the connectors to the left of where the sim card was located.

  16. oU3TWPHLPDZHrsvX
    oU3TWPHLPDZHrsvX
    MxhFJHKYpvmog6Iv
    dUZM2dapupGtKVQo

    • Pry up the next connector located right on top of the previous one.

  17. PcKYSeIjfhgjXqYC
    PcKYSeIjfhgjXqYC
    Ju3cTvmF3xZ2QNRw
    hwH1CEccH4XIMc6T

    • Using the Phillips screwdriver, remove the screw that's found next to the speaker on the top left of the phone.

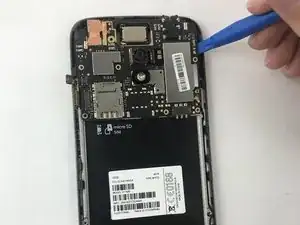

  18. mu2K1HeBlXc3yt3O
    mu2K1HeBlXc3yt3O
    VViV1CiSMNAvEG2b
    34KTNq2sJiw3RO5s

    • Using the plastic opening tool, carefully pry up the motherboard.

    If you have the dual-sim version there’s an additional connector on the back side of the motherboard. So you first will have to flip it towards the bottom of the phone, disconnect the sim slot (like in e.g. steps 15/16) and then you can remove the motherboard.

    okay.cool -

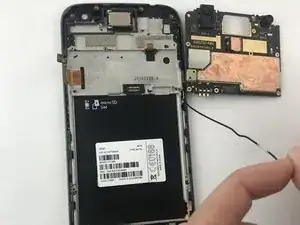

  19. BIcwjvDTIOdE1txU
    BIcwjvDTIOdE1txU
    CqmdugDKFZLxvtru

    • Pull up the cable that connects the motherboard and the charging port.

    • It's on the side that's closer to the motherboard, you might need to push the cable down first, and then pull it up.

  20. NibpHNXPBbvO2645
    NibpHNXPBbvO2645
    HJtVvDCfLweE3D4K
    uHCdBRvUiR2UdAZw

    • Pry up the frontal speaker with a plastic opening tool.

  21. ZZFkUJGPqa11Op1W
    ZZFkUJGPqa11Op1W
    JqJZaLFmNsj1RBsC
    JaFw3Tyf2WCUwyE4

    • Peel the black tape up with a plastic opening tool and or your fingers.

  22. iOwmRjWrM1GRH1tr
    iOwmRjWrM1GRH1tr
    A6WKukvmMAdCJHbB
    5KBvSfjn1rhi1mbl

    • Peel the flexible black cable using a plastic opening tool and or your fingers.

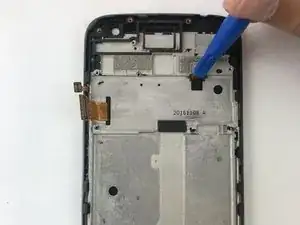

  23. cYuAxsfNvin1oOlh
    cYuAxsfNvin1oOlh
    oFNABRwy56SOr1Ue
    EH4H6dBJfiTpkqqv

    • Peel up the small tape that's connected to the screen with a plastic opening tool.

  24. KP5g4SfpiHW2PHiC
    KP5g4SfpiHW2PHiC
    jMEBNbIWNH4mL1Kx

    • Place an iOpener on the edges to soften the screen adhesive.

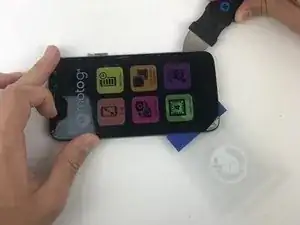

  25. dfECAamBokYywVAx
    dfECAamBokYywVAx
    JxHUvUcio4oOiXsS
    iJmSOvUAPQt4uHdq

    • Insert the Jimmy knife through the edge.

    • Place a plastic card so that the adhesive doesn't stick back again.

    • Go around the edges of the device with the Jimmy knife until all the adhesive has been removed.

  26. OMo6atVIehrDNTFe
    OMo6atVIehrDNTFe
    FhPZAgIUXupZOufs
    BRZdqpy1pRnIaHSa

    • Pull up on the LCD screen with your hands and remove it.

Conclusione

To reassemble your device, follow these instructions in reverse order.

Autore

Yordan Gil

Membro da: 14/02/18

426 Reputazione

4 commenti

The phone I just tried to fix had two digitizer connectors just like the one in this procedure, but all the replacement parts I can find on ebay and aliexpress etc. which claim to be for XT1601 - XT1609 have just a single connector. Any thoughts about why that would be?

jrhooker -

The smaller one is from the power and Volume buttons and needs tobe transfered to the new display if you bought one with Frame (which makes it much easier)

Marko Käppler -

I had to figure out that out myself. Yes, you will need to transfer the connector from the old frame to the new frame. I should also add, the frame I got had no buttons, so I had to get them from the old phone.

Joshua Rieth -

Good guide though I could not see the purpose of removing items 20, 21 & 22

pauldmallett -
