Motorola Moto G7 Play Fingerprint Sensor Replacement

Scritto Da: Monserath Casillas
  • Commenti: 5
Motorola Moto G7 Play Fingerprint Sensor Replacement

Difficoltà

Moderate

Passi

6

Tempo Necessario

25 minuti

Introduzione

This is a fingerprint scanner replacement guide for the Motorola Moto G7 Play, specifically the XT1952-3 and XT1952-2. The fingerprint is an important feature for the device, as it helps provide extra security to keep files safe. If the device no longer unlocks when the sensor is touched, then it should be replaced.

Before you begin, download the Rescue and Smart Assistant app to backup your device and diagnose whether your problem is software or hardware related.

  1. myPnevNSNNPKgJjY
    myPnevNSNNPKgJjY
    EO5ZBNZxWHVRNAoF

    • Turn off your device before you begin.

    • Use the iFixit pick to break the adhesive around the back case.

    • Use a heat gun, hairdryer, or iOpener to weaken the adhesive around the back case. If you're using the iOpener, please review the instructions for proper use.

    How long do you have to use the heat gun before the glue loosens?

    Pamela DeMars -

    It's worked for me with about maybe 15-20 seconds of heating per side.

    Matthieu Bister -

    I could not get the pick started under the cover. Ruined several tips. I started with a hair dryer and switched to a heat gun. Be careful with a heat gun! 😬

    K Goatee -

  2. tgoBehD2raMYJuwT

    • Detach the back case from the phone.

    • Make sure the back is opened right to left so the cable of the fingerprint scanner does not get damaged.

  3. ib1tdYuELTqFPZih
    ib1tdYuELTqFPZih
    qx5B3YUkDDxMqSno

    • Use the iFixit pick and the iFixit opening tool to pull the fingerprint scanner off of the back case.

    My g7 power had a removable connector at the phone side

    K Goatee -

  4. IBprkIPONWOLybDS

    • Remove the nine 3.2 mm screws from the motherboard cover with a Phillips #00 screwdriver.

  5. VKebaQtTHLDuDNod

    • Lift motherboard cover from the bottom.

    • Use reverse tweezers or a similar tool if needed

  6. E5aIMedbGPQaXjIa
    E5aIMedbGPQaXjIa
    ZkjUdodIseXKavkI

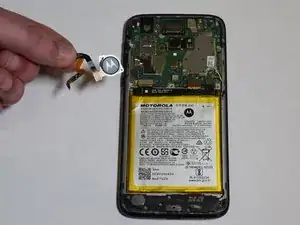

    • Using the iFixit opening tool, carefully disconnect the ribbon cable connecting the fingerprint scanner to the motherboard.

    • Remove the fingerprint scanner from the device.

Conclusione

To reassemble your device, follow these instructions in reverse order.

Autore

Monserath Casillas

Membro da: 10/02/20

1146 Reputazione

Un commento

Do you need to replace the adhesive on the rear cover? Or is it reusable?

wtwolfe -
