Motorola Moto X 2nd Generation Power and Volume flex cable Replacement

Scritto Da: Sophia
  • Commenti: 3
Motorola Moto X 2nd Generation Power and Volume flex cable Replacement

Difficoltà

Moderate

Passi

8

Tempo Necessario

Nessuna stima

Introduzione

Before you begin, download the Rescue and Smart Assistant app to backup your device and diagnose whether your problem is software or hardware related.

  1. iN26y43IWB5GBCK6
    iN26y43IWB5GBCK6
    oVp5ISmWW6kEtd2N
    ahwSCpId1o3xaWeY

    • Remove SIM card tray.

  2. KiUWUVnvlhHaMIWh
    KiUWUVnvlhHaMIWh
    ygporVjDHXKUOAOE
    uEieVysUf6CEcUY6

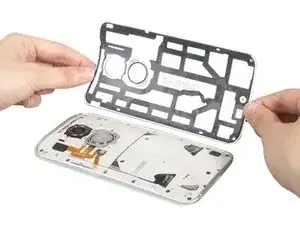

    • Remove back cover.

  3. MQJBAsPHGUbvQJBZ
    MQJBAsPHGUbvQJBZ
    LEfmV4yHOT6NvdWf

    • Remove those two rubber cover.

  4. hwOFOU1d6cQb5MJb
    hwOFOU1d6cQb5MJb
    TFiUXoUM53Od5mWT

    • Release power connecting flex connector and battery connector.

  5. 6HmBSBgjlD4OIReM
    6HmBSBgjlD4OIReM
    tN3GueLvqWGISjPs

    • Twist off all 18 black torx screws and remove the middle housing from front assembly.

  6. XZXRfsaXPSwSwcmY
    XZXRfsaXPSwSwcmY
    MB5FjvBVLpIJNbiB

    • Release power flex connector from connecting flex.

  7. uJdeG1M3pSi2FcPn
    uJdeG1M3pSi2FcPn
    MWikpoSiuCaoaeFm
    JfbCdinBp625j5pC

    • Remove securing bracket and side buttons.

  8. oYPTeBkqSMcdjCDo

    • Pry up and remove the power flex.

Conclusione

To reassemble your device, follow these instructions in reverse order.

Autore

Sophia

Membro da: 25/03/14

43810 Reputazione

3 commenti

Followed your instructions. Volume works, power button still no go.

It clicks fine, but nothing happens..

Carlo Petermann -

I have the same issue. Any ideas? Resolutions?

sagar bhale -

The screwdriver is T4 on my european moto X 2014, not T3!!

Clément Masci -
