Motorola Moto X 2nd Generation Rear Camera Replacement

Scritto Da: Sophia
  • Commenti: 0
Motorola Moto X 2nd Generation Rear Camera Replacement

Difficoltà

Moderate

Passi

7

Tempo Necessario

Nessuna stima

Introduzione

Before you begin, download the Rescue and Smart Assistant app to backup your device and diagnose whether your problem is software or hardware related.

  1. cebqCUD1pbEMqS1v
    cebqCUD1pbEMqS1v
    EGIP2TJxeRHfPkLc
    bBiyoMr4qGFud5wI

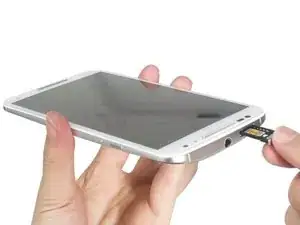

    • Remove SIM card tray.

  2. VAdBHi6rFqogZRff
    VAdBHi6rFqogZRff
    NxfSFaJLd2YqGrRF

    • Push the eject pin to open a gap and place a guitar pick into the gap.

  3. EbcnN3sklNJe1dlx
    EbcnN3sklNJe1dlx
    VqEOSZHeau13inva

    • Slide the guitar pick to cut the adhesive sticker and peel off the back cover.

  4. a5jRMownN4hGuKYG
    a5jRMownN4hGuKYG
    yGtV1l51nIOuO3mk

    • Remove two pieces rubber cover which protecting the flex connectors.

  5. rrAFrrjiUFUtSFnH
    rrAFrrjiUFUtSFnH
    6tZiPX36ltxJMvWE

    • Release the power button connecting flex connector and battery connector carefully.

  6. WAruVPeAk2KxBNyG
    WAruVPeAk2KxBNyG
    NFQJ5xNKsQQPx6mA

    • Twist off all 18 black torx screws and separate the middle housing from front assembly.

  7. mj2eeKihSWgRTTnQ
    mj2eeKihSWgRTTnQ
    15eXM2iBypEtNTss
    i5nu5Z6TsQEIoTdZ

    • Release rear camera connector and remove it easily.

Conclusione

To reassemble your device, follow these instructions in reverse order.
