Motorola V276 Ear speaker replacement

Scritto Da: Kyle Klitzner
  • Commenti: 0
Motorola V276 Ear speaker replacement

Difficoltà

Moderate

Passi

6

Tempo Necessario

15 minuti

Introduzione

A guide for replacing or inspecting the Motorola V276 ear speaker

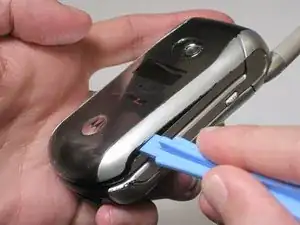

  1. QEI3HTRB1CKxW4W3

    • Place a plastic opening tool in the small crack that runs along the side of the front case to pry it off.

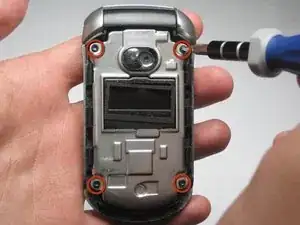

  2. pn514ySnowrDKPVM

    • Use a T6 Torx Screwdriver to remove all 4 small screws.

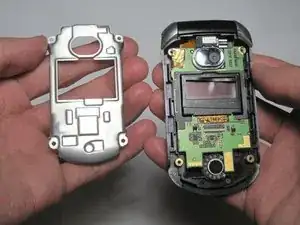

  3. FAJOuMiMlfySCsiH

    • Remove the midframe from phone.

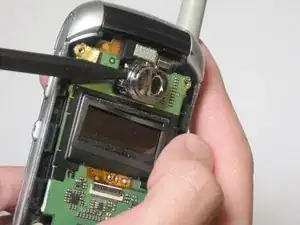

  4. qd6rES1IScRGh1AR

    • Use a spudger to remove the plastic camera casing.

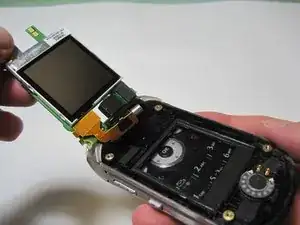

  5. uMd2m1xL6KIJ6aEa

    • Gently lift the LCD away from the frame.

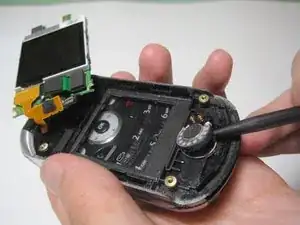

  6. YfiqKoOiuCUWMO5K

    • Use your hands or a spudger to remove the ear speaker.

Conclusione

To reassemble your device, follow these instructions in reverse order.
