Motorola W490 Keypad Membrane Replacement

Scritto Da: Will Edwards
  • Commenti: 0
Motorola W490 Keypad Membrane Replacement

Difficoltà

Moderate

Passi

4

Tempo Necessario

10 minuti

Introduzione

Strumenti

  1. ObsjCHYyoAJsEqBV

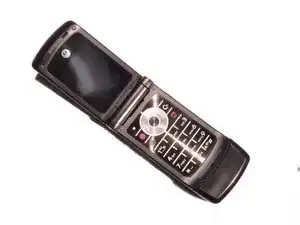

    • Open phone so the keypad is facing up.

  2. Z4VqRJHgNQUQX51D

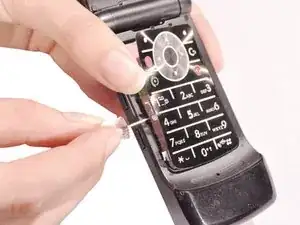

    • Insert a push pin into the notch located on the left side of the keypad and push the pin under the keypad membrane.

  3. QIO13qnijhG1ipbs

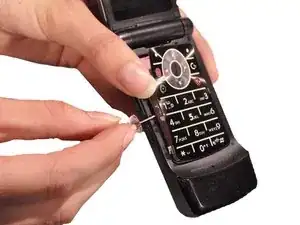

    • Continue working the pin under the keypad membrane until it is elevated enough to grasp.

  4. bjR6nmdR5aEvVagj

    • Grasp the keypad membrane firmly and remove it from the phone.

Conclusione

To reassemble your device, follow these instructions in reverse order.
