Before proceeding with the replacement guide, make sure the headphones are unplugged from any device.
Strumenti
Ricambi
-
-

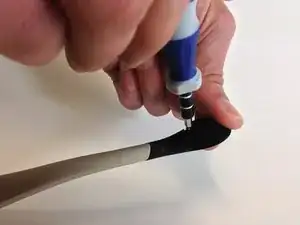

Remove star head screw from above base of the microphone with T6 Torx Screwdriver.
-
To prevent stripping, use an appropriate bit and ensure screwdriver is oriented perpendicular to the face of the screw.
-
-
-
To expose the next screw, peel foam cover from the base toward the end of microphone.
-

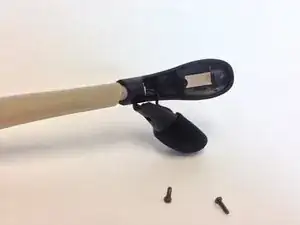

Remove screw with screwdriver and place in a safe location.
-
-
-

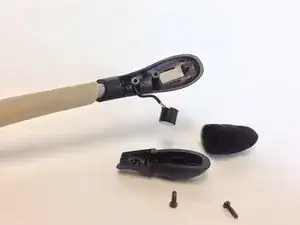

With Screws removed, remove the microphone from foam and plastic cover to be inspected.
-
If the microphone is corroded or wires are frayed, it must be replaced.
-
-
-

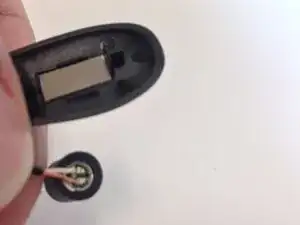

Clip both wires to remove defective microphone.
-
Be sure to clip as close to the base of the microphone as possible in order to have enough wire for the new microphone.
-
Align wires with corresponding pads on new microphone and solder in place.
-
For soldering, see the Ifixit soldering guide: Come saldare e dissaldare componenti elettrici
-
To reassemble your device, follow these instructions in reverse order.
