Neato BOTVAC CONNECTED Front Roller Brush Replacement

Scritto Da: Justin Silva
  • Commenti: 0
Neato BOTVAC CONNECTED Front Roller Brush Replacement

Difficoltà

Moderate

Passi

10

Tempo Necessario

10 - 15 minuti

Introduzione

In this guide you will be able to replace the front roller of the Neato Botvac Connected. This will need to be replaced if there is excessive noise coming from the vacuum or if there are excess debris. In order to complete this guide you must first follow the guide to disconnect the battery.

  1. JxTf5FESEpAYLZZL

    • Place the top of the Neato Botvac Connected against a flat surface.

  2. I1VBxxGJVUaWONWZ
    I1VBxxGJVUaWONWZ
    ecocLqHSQLKRy1Qt

    • Remove the two 5.5 mm screws with a Phillips #2 screwdriver.

  3. hvXQuugkQkLrLvBv
    hvXQuugkQkLrLvBv
    mwyiZ6JYEH6MR5ZS

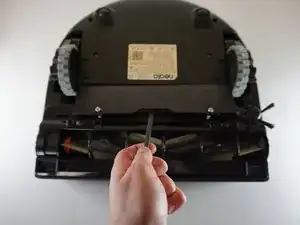

    • Using the spudger, remove the panel covering the battery.

  4. DxUSMhlG4PT2VlnN
    DxUSMhlG4PT2VlnN
    c1I5pYQ1nDPvjkVH
    uvwbWob3CQeQFRCy

    • Gently remove the connecting wires attached to the battery.

    • The wires are attached to the vacuum through a clip.

  5. b1raCqKE1IhWccDx

    • Using the spudger, gently remove the battery from the device.

  6. jpqa1uTIYaVCIDuy
    jpqa1uTIYaVCIDuy
    suaB6khXjvpi2iiR

    • Remove the following screws with a Torx screwdriver:

    • Four 2.3 mm screws.

  7. NXWuDcnfEwORn6qh

    • Gently remove the thin panel held by the four screws with a spudger.

  8. GjtiWXFiSvaIHEiJ

    • Gently remove the two small wheels, and the axles attached to them.

  9. vBSPXKtwjVHGdTbP

    • Gently remove the panel that is on top of the front roller with the spudger.

  10. EJEIIUEU46yJZQJQ

    • Gently remove the front brush.

Conclusione

To reassemble your device, follow these instructions in reverse order.
