Neato XV Signature Wheel Assembly Replacement

Scritto Da: Colton Gregory
  • Commenti: 0
Neato XV Signature Wheel Assembly Replacement

Difficoltà

Easy

Passi

7

Tempo Necessario

10 minuti

Introduzione

A guide to replace your Neato XV Signature's Wheel Assemblies.

  1. VCHYvr5u2BfANS4B

    • Place the Neato with the bottom side facing up.

  2. d2h2Z1BCkKAQEoTN

    • Remove the four machine screws securing the main compartment plate using a Phillips #0 screwdriver.

  3. gAlqATgkgLUWJGw6
    gAlqATgkgLUWJGw6
    YgTbHISaVhWArkvq

    • Remove the main compartment plate, exposing the wheel axis and fan.

  4. qulXLBEWKWH2Vpsl

    • Lift up on the wheel axis to remove the axle bar from its clasp.

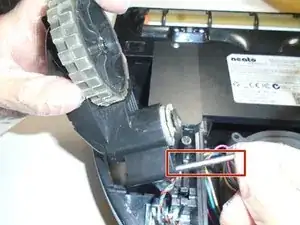

  5. 2bNjeQE412bGTAtU
    2bNjeQE412bGTAtU
    4QLVmcsSPPfenCFB

    • Remove the axle bar from the wheel mount, exposing the suspension spring.

  6. rXyZ6XUHuVwQwDyJ
    rXyZ6XUHuVwQwDyJ
    3DRtOXRRHQnmwkBv

    • Unlatch the suspension spring from the wheel mount, exposing the wheel connector cable.

  7. IgMQlIdZ5ouSTJlt

    • Unplug the wheel connector cable.

    • Repeat steps 4-7 with the other wheel.

Conclusione

To reassemble your device, follow these instructions in reverse order.
