Nexus 10 Display Replacement

Scritto Da: Benjamin Troller

Commenti: 13

Difficoltà

Moderate

Passi

Tempo Necessario

Nessuna stima

Introduzione

Strumenti

Ricambi

Passo 1

Using a plastic opening tool, remove the thin plastic cover from back of the tablet by prying up from its small tab.

Passo 2

Remove the five 2mm screws on the back of the device using a PH00 screwdriver.

Passo 3

Pry the device apart by inserting a plastic opening tool in the seam between the plastic backing and display assembly. Use the tool to unclip the plastic tabs in between the backing and the display.
Pull the the plastic backing off the display assembly using your hands.
Do not do this step with only your hands. You will require a significant amount of force to separate the device.

Be carefull with the power button cable. Don’t insert the plastic tool in this zone

Jesus Garcia - 01/10/17

Some instruction guides also suggest optional use of a suction cup with which to tug on the glass while separating the plastic backing. I found this helpful. Also, if you have a spudger of more rigid plastic, use that one here. My blue spudgers got chewed up pretty badly during this process.

Jim - 13/11/17

I found that the top right (looking at the screen) doesn’t have any corner clips, just a metal antenna (?), so it is easiest to get this corner popped first and then work your way around. The bottom corners have clips which are tough to undo.

Jeremy R - 07/02/20

Passo 4

Detach the three connector ribbons passing over the battery using the plastic opening tool.

The left two connectors flip up from the cable side. The right connector flips up from opposite the cable.

Glenn Davis - 16/10/17

Note that you don’t just pull the ribbons out. There is a clamp on each connector that needs to be prised opened, releasing the ribbon. This was helpful: https://youtu.be/yru4k62qdEU?t=302

Royston Shufflebotham - 24/03/19

You sir, are a true humanitarian!!!

Harold Gue - 09/07/20

Passo 5

Remove the twelve 2mm screws around the perimeter of the battery with a PH00 screwdriver.

Passo 6

Disconnect the battery by lifting it upward and pulling it away from the connector.

When reassembling reconnect the data ribbon cables first, then connect the battery connection last so that you’re not plugging in data lines while powered. Ideally you’d disconnect the battery first but that’s a bit hard with the design so you just have to try to ensure it’s switched off first.

Andrew Whalan - 16/09/17

Excellent with video

Jim Scott - 30/12/20

Passo 7

Remove one screw on the logic board with a PH00 screwdriver.

Passo 8

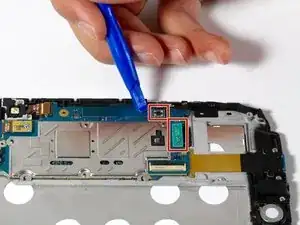

Disconnect right speaker connector ribbon from logic board.
Lift the speaker out by pulling up on its corner.

Passo 9

Disconnect connectors around the perimeter of the motherboard.

Passo 10

Remove motherboard by gently pulling upward under its corner.

Passo 11

Remove the three 2mm screws along the right side of the device using a PH00 screwdriver.

Passo 12

Unseat the small vibrator motor by gently applying upward pressure with a spudger.

Expect some resistance when prying up on the vibration motor. There was some aggressive double sided tape under it and it was stuck pretty firmly.

Jim - 13/11/17

Passo 13

Lift the assembly by gently applying upward pressure with the spudger on the assembly.

Passo 14

Gently pull battery-audio jack-USB assembly upward, detaching it from its adhesive.

Passo 15

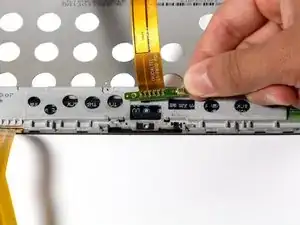

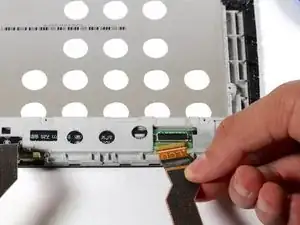

Detach LCD connector ribbon by pressing upward on connector latch using a plastic opening tool.

Passo 16

Unscrew the two 2mm Phillips #00 screws holding the ribbon in place.
Remove the board by tilting it forward and pulling outward.

Passo 17

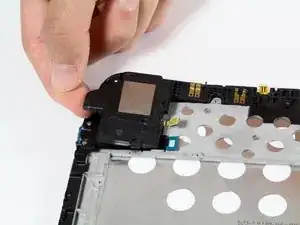

Remove second speaker by gently tilting and pulling upward.

Passo 18

Unscrew the two 2mm screws securing the micro HDMI connector with a #PH00 screwdriver.
Remove the connector by liberally applying upward pressure.

Passo 19

Unscrew the 2mm Phillips #00 screw that holds the flash enclosure.
Remove the flash assembly with a plastic opening tool by lifting the assembly upward.
