Nikon Coolpix L320 LCD Replacement

Scritto Da: MollyHenderson
  • Commenti: 0
Nikon Coolpix L320 LCD Replacement

Difficoltà

Moderate

Passi

6

Tempo Necessario

Nessuna stima

Introduzione

This guide will help walk you through how to replace the LCD screen in you Nikon Coolpix L320

  1. 3UQpXXEIru2gLGWC
    3UQpXXEIru2gLGWC
    PcmByCgAhyqMGEDr

    • Flip the camera over to reveal the card/battery door.

    • Slide the button to the unlocked position and the door should pop open.

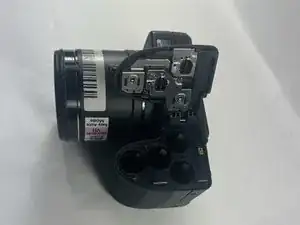

  2. VymJGlRTFBUNqVpL
    VymJGlRTFBUNqVpL
    CpxGqxTXKrkrnsNI

    • Take out the old batteries.

    • Look at the yellow sticker inside of the the battery compartment. You'll see the symbol for the direction the new battery should face when replaced.

    • The “+” means to put the raised end facing up. The “-“ means to put the flat end up.

  3. 2hn2vTmviepr6LDw
    2hn2vTmviepr6LDw
    CyAYarJLZLipfY6p
    2c2MVFxRN2OmEXGm

    • Use a JIS screwdriver to remove seven screws from the frame of camera.

  4. BhOmks4jMMVhIVWq

    • Use an opening tool or spudger to separate the front and back of the camera.

  5. PJONoG6yG1AbGMVe

    • Use a JIS screwdriver to remove the screws connecting the LCD to the motherboard.

  6. CeBv3gmxouGMPGyQ

    • Gently flip the LCD over to reveal a ribbon cable connected to the motherboard.

    • Use the tip of a spudger or your fingernail to flip up the small locking flap of the ZIF connector. Then, you can safely pull the cable out.

    • Remove the LCD screen from the camera.

Conclusione

To reassemble your device, follow these instructions in reverse order.
