Nikon Coolpix S70 Display Screen Replacement

Scritto Da: Danielle Morris
  • Commenti: 2
Nikon Coolpix S70 Display Screen Replacement

Difficoltà

Moderate

Passi

6

Tempo Necessario

5 - 10 minuti

Introduzione

This guide will assist you in replacing your broken, cracked or malfunctioning display screen. For this replacement you will need a Phillips #000 screwdriver and a plastic opening tool.

  1. JLsorsgVLLLyHOd4
    JLsorsgVLLLyHOd4
    FBCErnHPNTWvGMZP

    • Power off the camera before beginning.

    • Remove the battery by sliding the latch located at the bottom of the camera.

    Still waiting for Mizzouri to pass Right to repair :/

    Poetastords1962 -

  2. BNgBIMXhavcRUZek
    BNgBIMXhavcRUZek
    BMhlFGOKpD5q1V1j

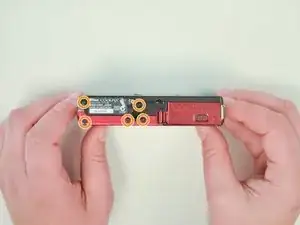

    • Using a Phillips head #000 screwdriver, remove the five 0.4mm screws on the bottom of the camera.

  3. nMXH4iBOiW4KaQcf
    nMXH4iBOiW4KaQcf
    DZWQXyYAuDMLK15a
    LPFUPwxZkMeYsQT1

    • Use a plastic opening tool to carefully separate the back panel of the camera.

    • Once loosened, use your fingers to manually separate the two panels.

  4. mJEGuUwAutSZ1bHh
    mJEGuUwAutSZ1bHh
    iyKdelQqMWbGFfV2
    P3epRlVT3VkQDlu2

    • Using a plastic opening tool, lift both latches that hold the ribbon cables in place.

  5. CWHA2q2WJHZdhMnc

    • Carefully disconnect the orange flat ribbon cables from the latches.

  6. 5Ps3rT2TnCEFdFjR
    5Ps3rT2TnCEFdFjR
    3WCmQMUTauLuXtUa
    GaaVuqivfqcBOFbX

    • Remove the screen from the case of the camera by carefully pushing on the back of the screen.

    • You may need to push with a little force to get the screen to loosen.

Conclusione

To reassemble your device, follow these instructions in reverse order.
