Nikon D70 CF Slot Replacement

Scritto Da: joergkihm
  • Commenti: 5
Nikon D70 CF Slot Replacement

Difficoltà

Moderate

Passi

12

Tempo Necessario

45 minuti

Introduzione

If you get some CHA - errors on your Camera, it is likely time to replace the CF slot. The part number of the Nikon D70 CF slot is 1F998-181.

  1. r1e5PuGaIhXloVrr

    • Remove the two 4.8 mm Phillips screws securing the battery side of the rear cover to the D70.

  2. y3CG2CXlKiPBUOXd

    • Remove the two 4.8 mm Phillips screws securing the port side of the rear cover to the D70.

  3. QyvbtBNrhmpvNV4n
    QyvbtBNrhmpvNV4n
    iMZNE3iEHhNiYuFm

    • Use your fingernail to flip up the ZIF locking flap on the LCD ribbon cable socket.

    • Be sure you are opening the locking tab, not pulling against the socket mounted to the board.

    • Pull the LCD board ribbon cable out of its socket.

  4. SCAjimU2aiLyFVYi
    SCAjimU2aiLyFVYi
    bueQ4q4Ce1SeDNxw

    • Carefully pull the sides of the rear cover away from the body of the D70.

  5. 61CUc3sTwxgAT2AR
    61CUc3sTwxgAT2AR
    dVvSvYmSrKQSpXgV

    • Pull the rear cover off the body of the D70, minding the LCD board ribbon cable that may get caught.

    • At this point, the capacitor is visible and its exposed contacts are boxed in red in the second picture. Even though they are recessed, be careful not to touch the contacts to avoid shocking yourself.

  6. yY4kAKjBadBfH5hq
    yY4kAKjBadBfH5hq
    XJKhbAHuXEUyFGIp

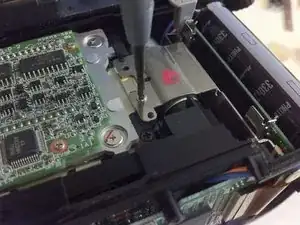

    • Remove the two Phillips screws securing the holder of the CF Card Slot.

  7. y6V3eMf2cTwRnHi6

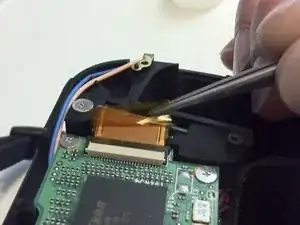

    • Peel of the Foil securing the Flexcable.

  8. 1P2NAAb4DF46NuTS
    1P2NAAb4DF46NuTS
    tAXNKDcnXKggMbVm

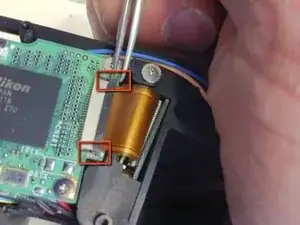

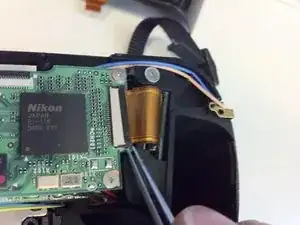

    • Use Tweezers to open the locking on the ribbon cable socket.

  9. fFnGqxjpsCgOLgMM
    fFnGqxjpsCgOLgMM
    ZULoPkbpesubycFB

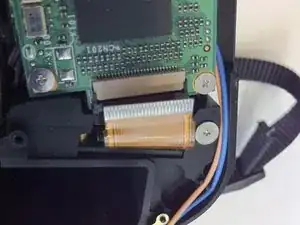

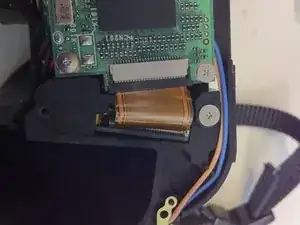

    • Pull the ribbon cable out of its socket.

  10. SKF6U1mPYUXmFJ4Y
    SKF6U1mPYUXmFJ4Y
    XDIvSK4CHtsPQOVF

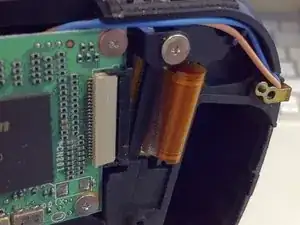

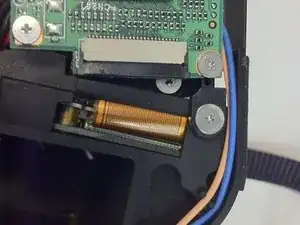

    • Carefully fold the Pull the ribbon cable towards the CF Slot

  11. NWeSxdVLNdfIsDO1

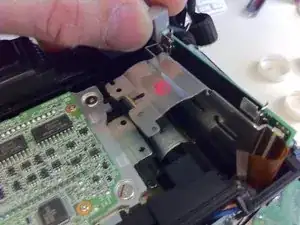

    • Pull the Slot out of the body.

  12. UjH4ZWkHFFCOW6EW
    UjH4ZWkHFFCOW6EW
    LB4BCTYQXoFrotab

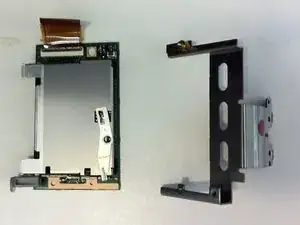

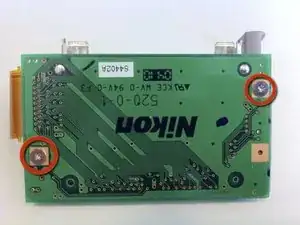

    • Remove the two Phillips screws to separate the Holder from the Slot.

Conclusione

To reassemble your device, follow these instructions in reverse order.
