Nikon D700 Screen Replacement

Scritto Da: Leandro Neves
  • Commenti: 0
Nikon D700 Screen Replacement

Difficoltà

Moderate

Passi

5

Tempo Necessario

Nessuna stima

Introduzione

If your Nikon D700 screen needs to be replaced because it is broken/faulty, use this guide to replace your Nikon D700 screen.

  1. tCejMIsb3B3HkWWN

    • Use a spudger and your hands to remove the front grip cover, held together by an adhesive.

    • You may need to use heat to loosen up the adhesive. Try using the iOpener.

    • Under the rubber cover, use a screwdriver to remove one screw on the top right corner.

  2. uGOK5KAEyXBGOhpd
    uGOK5KAEyXBGOhpd
    L3lejdhVvIYi5RKA

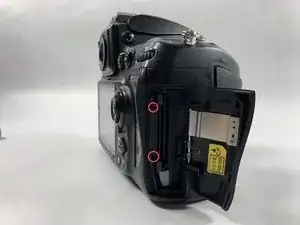

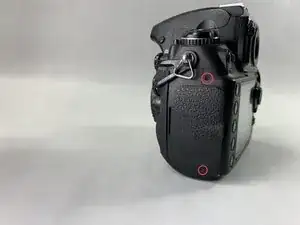

    • Use a Phillips #00 screwdriver to remove the five screws that hold the cover in place.

  3. 6dyAxpIaZqTCZjYY

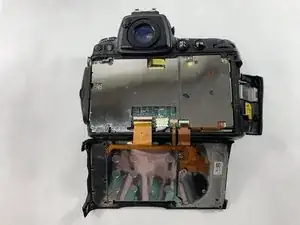

    • Gently remove the screen by pulling the top away from the body.

    • The screen is connected by wires on the bottom, so be careful when taking the screen off.

  4. iGsJLeY14IabDLgN
    iGsJLeY14IabDLgN
    ck21XY64H2CZkeV1
    iKcjZkvUDiHO6QwR

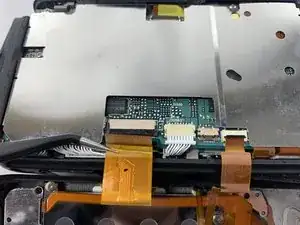

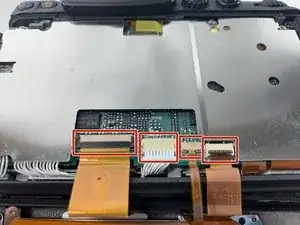

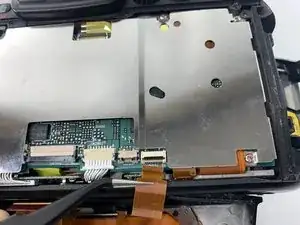

    • To remove the screen entirely, use a spudger to unlock the connectors.

    • Pull the cables out gently using tweezers or your spudger.

  5. mVEgPrCHNhfcYSUT
    mVEgPrCHNhfcYSUT
    45nhQgjCOavyU5OV

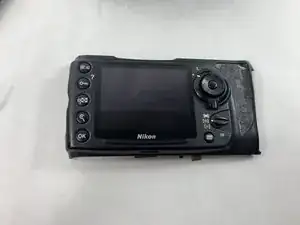

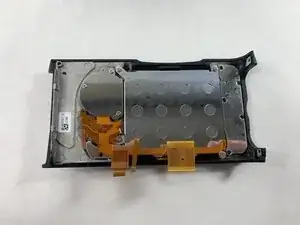

    • The screen should be completely detached from the camera and can now be replaced with a new screen.

Conclusione

To reassemble your device, follow these instructions in reverse order.
