Nikon D7000 Shutter Replacement

Scritto Da: Charly
  • Commenti: 2
Nikon D7000 Shutter Replacement

Difficoltà

Very difficult

Passi

6

Tempo Necessario

1 ora

Introduzione

  1. QmZjErJcZRSlSVDX

    • If the shutter looks like that, nothing works.

  2. RUaHgddlcSAWtPPm

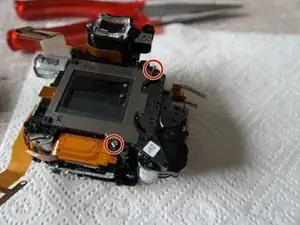

    • Remove 2 screws.

  3. yQZuMZEJsMbnkjJw

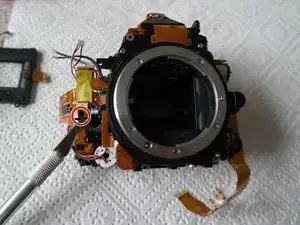

    • Pull off the flex cable and remove the 3rd screw underneath.

  4. xFvJiJYIdwTIfTE4

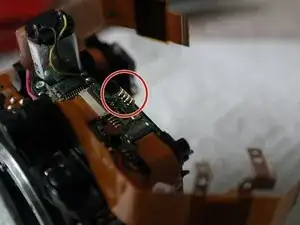

    • Desolder 4 solder bridges

  5. hOCQ6KxUjDRtrSrE

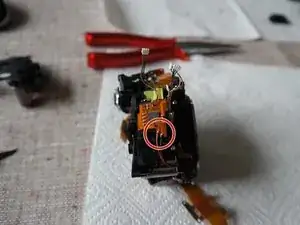

    • Unsolder the motor cable

  6. InawbK2aCDYNjXRD
    InawbK2aCDYNjXRD
    WDDoZwHabIvlajOT
    FG2wBaoa5vv2UmlS

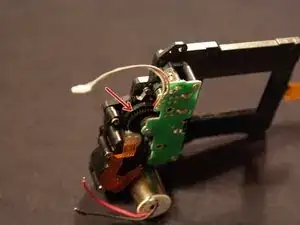

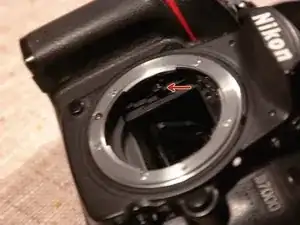

    • Turn the gears to open the curtain.

    • The lever is then right.

    • When assembling, press the shutter lever down.

Conclusione

Repeat the steps in order to reassemble your device.
