Ninja Master Prep QB900B button replacement

Scritto Da: Kamal Taha
  • Commenti: 3
Ninja Master Prep QB900B button replacement

Difficoltà

Easy

Passi

4

Tempo Necessario

8 minuti

Introduzione

This guide will teach you how to replace the spring in the button of your blender.

  1. OiKNQndSFBmlkGVc

    • Place the blender to the side.

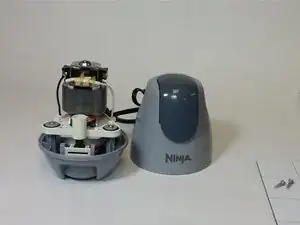

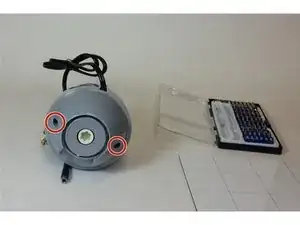

  2. THbWfeWfFkj1d1Wd
    THbWfeWfFkj1d1Wd
    d11xpJ4GlcTKeA1h

    • Remove the two highlighted screws with a Phillips #2 Screw Driver

    • Gently pull off the top.

  3. wNfGg2RvB4hcCERL

    • Remove the highlighted screws.

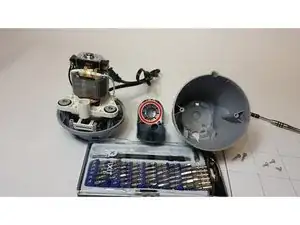

  4. ddXRAZqRQAOB6Hqh

    • Pull out the highlighted spring.

    • Now wash the button with soap and water, and follow the guide backwards to reassemble.

    Any idea where to get a replacement switch for this model? Mine is FRIED! Thank you!

    Joe Michaels -

Conclusione

To reassemble your device, follow these instructions in reverse order.

Autore

Kamal Taha

Membro da: 27/08/15

679 Reputazione

2 commenti

mine has different screws and they won’t come out easily. looks like it might have a star head. thought it was hex and now the screws are stripped :(

Stephen Filippone -

turns out it was a security torx. how annoying.

Stephen Filippone -
